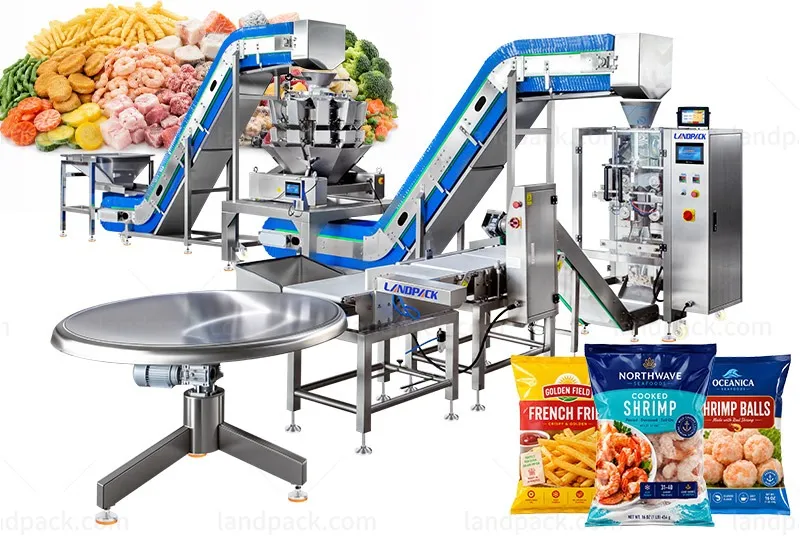

Automatic Frozen Food Packaging Machine Multihead Weigher Vertical Packing Machine with Checkweigher

Application:
This frozen food packaging machine packs frozen meatballs, fish balls, dumplings, seafood, shrimp, chicken pieces, frozen vegetables, and other loose frozen foods. Two inclined conveyors move the product through the weighing and filling sections without requiring excessive machine height. The 10-head weigher portions each batch before the vertical machine forms and seals the bag. This frozen food packing machine runs at up to 60 bags/min, depending on product size, target weight, and bag dimensions.

Package Type:
The machine produces pillow bags and back-seal bags directly from roll film. It works with laminated films used for frozen foods, including PET/PE, BOPP/PE, PA/PE, and other low-temperature-resistant heat-sealable materials. Bag width, length, filling weight, and printed film design can change according to the product.

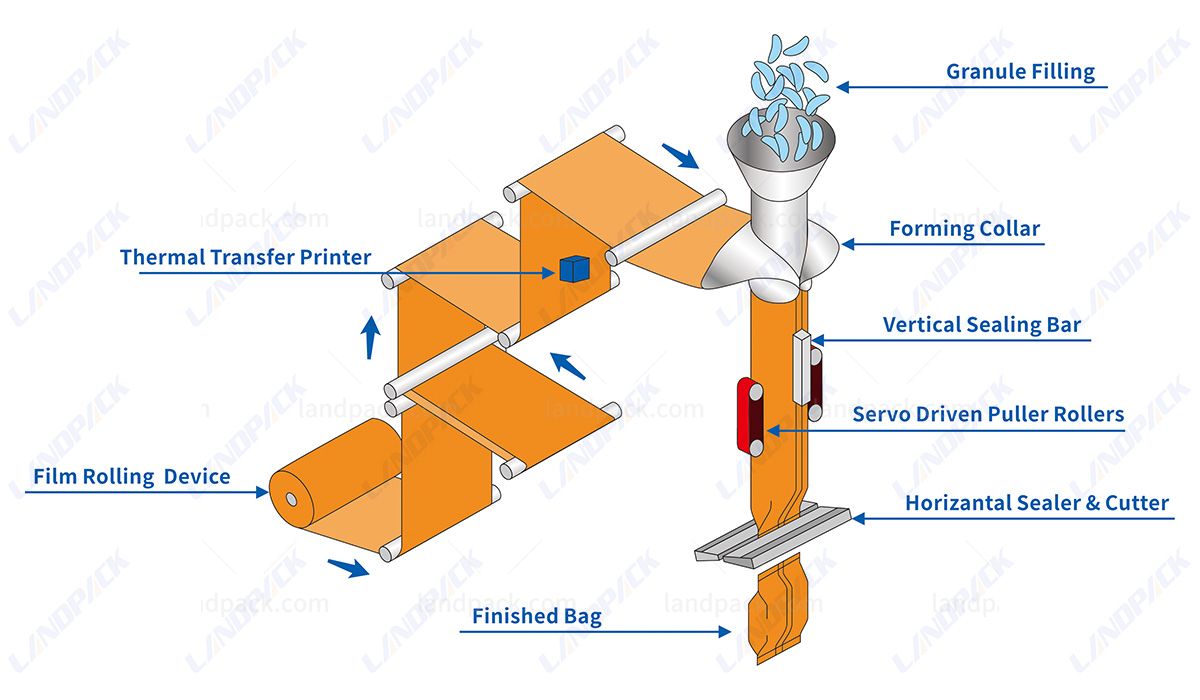

Workflow:
1. First Inclined Feeding Conveyor, 2. 10-Head Combination Weighing, 3. Second Inclined Conveyor, 4. Vibrating Transition Hopper, 5. Thermal Transfer Coding, 6. Bag Forming, 7. Product Filling, 8. Sealing and Cutting, 9. Finished Bag Conveying, 10. Checkweighing, 11. Rejecting, 12. Collection

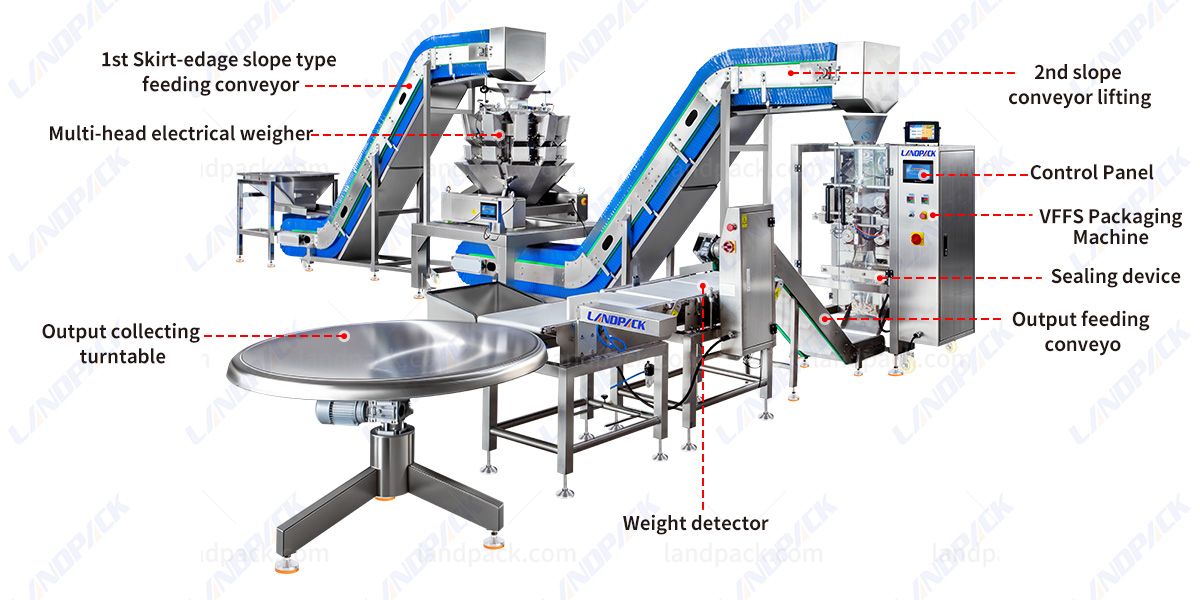

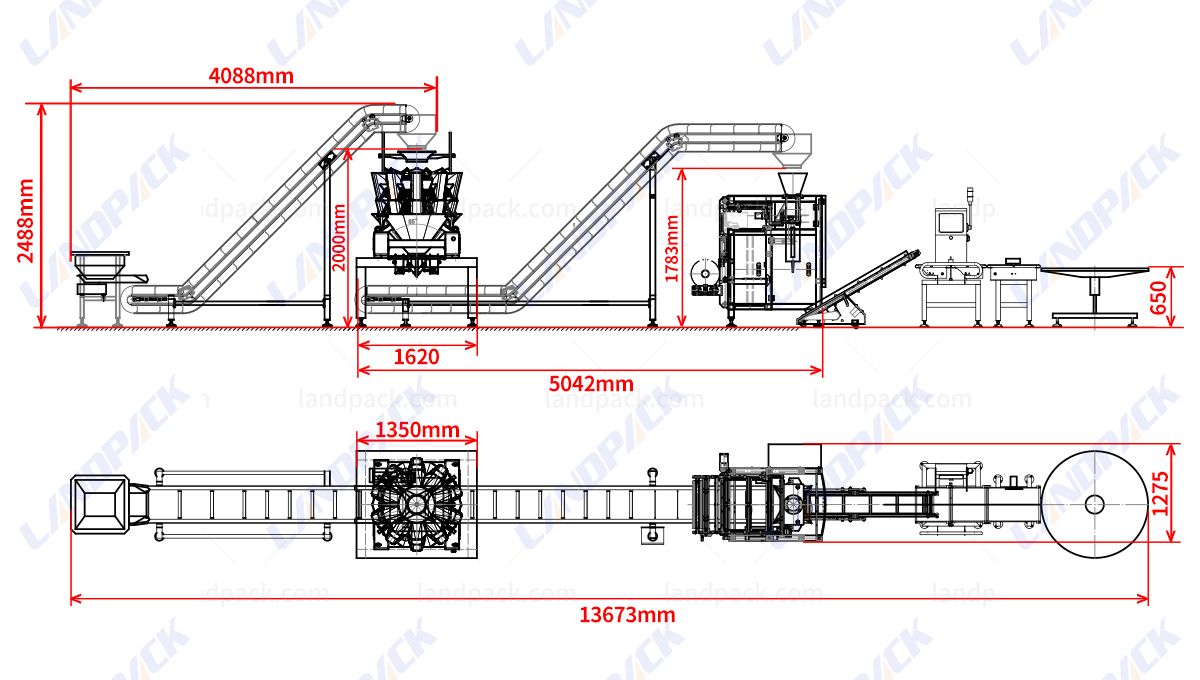

Machine Structures:

Features:
1. Full SS304 machine frame handles wet and cold frozen-food production areas

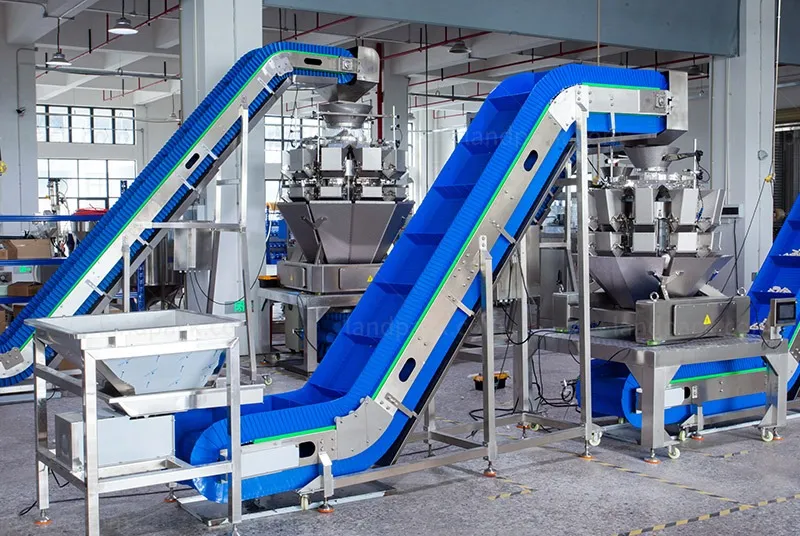

2. Two-stage inclined conveying layout suits factories with limited ceiling height
3. Food-grade PU skirted belts carry frozen products between machine sections

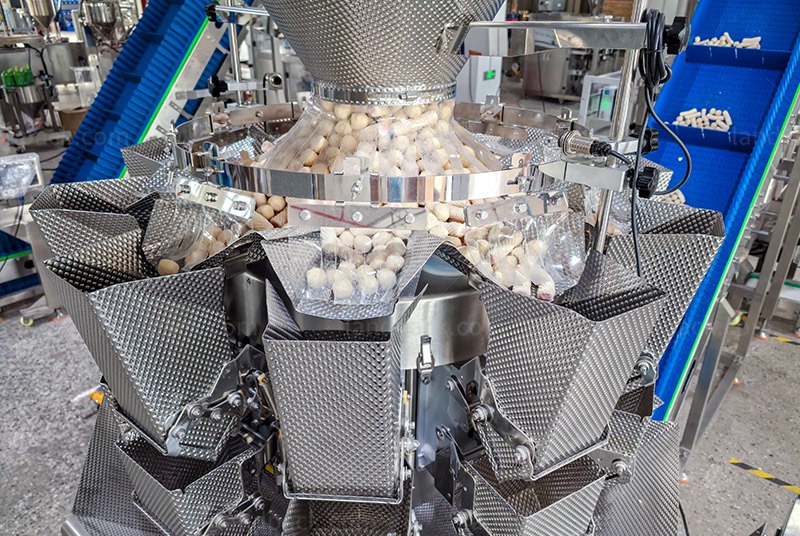

4. 10-head combination weigher portions frozen meatballs and seafood by weight
5. Patterned contact surfaces reduce sticking between frozen pieces and weighing parts
6. Vibrating transition hopper helps products pass into the bag former without piling up
7. Thermal transfer coder prints date, batch, and traceability information on the film

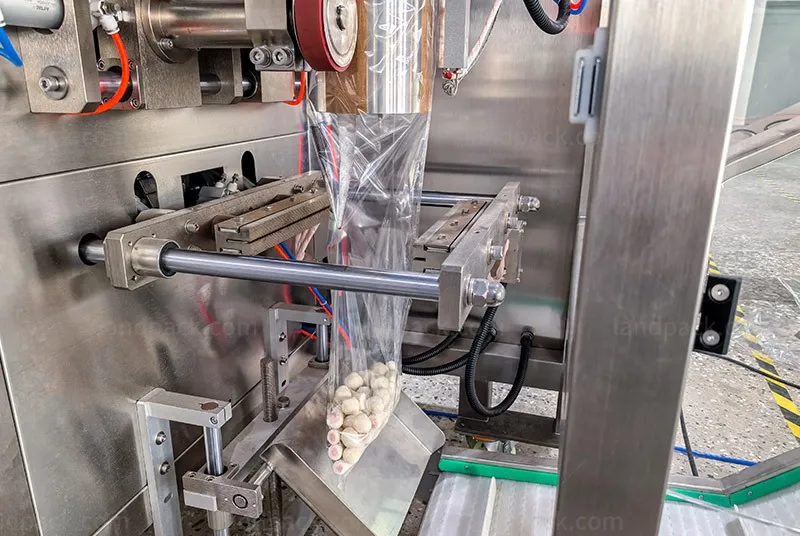

8. Vertical packer forms, fills, seals, and cuts bags directly from roll film
9. Finished-bag conveyor handles heavier frozen packs after sealing
10. Checkweigher checks every finished bag and removes packs outside the set range
11. Collection platform keeps accepted bags together for case packing
