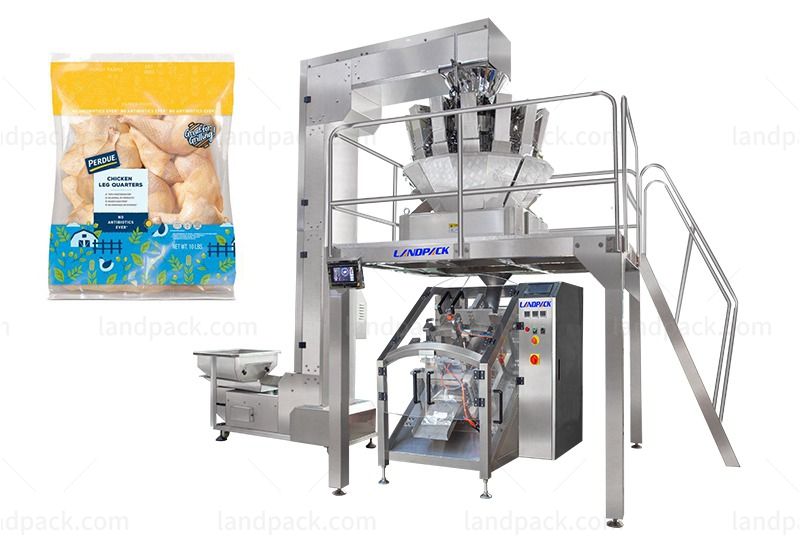

Inclined Type Vertical Form Fill Seal Machine For Heavier Product

  • Application
  • Description
  • Parameter
  • Video

Application:

1. Packing heavy products. The inclined packing process can effectively reduce the impact of packing items on the bag, which is usually used to pack live fish, frozen poultry, seafood and heavy hardware.

2. Package fragile products. They are well integrated with weighing and metering systems for fragile products such as potatoes, fruits, baked goods, biscuits, pastries and other general fragile products.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Inclined Type Vertical Form Fill Seal Machine For Heavier Product

Stainless steel frame.

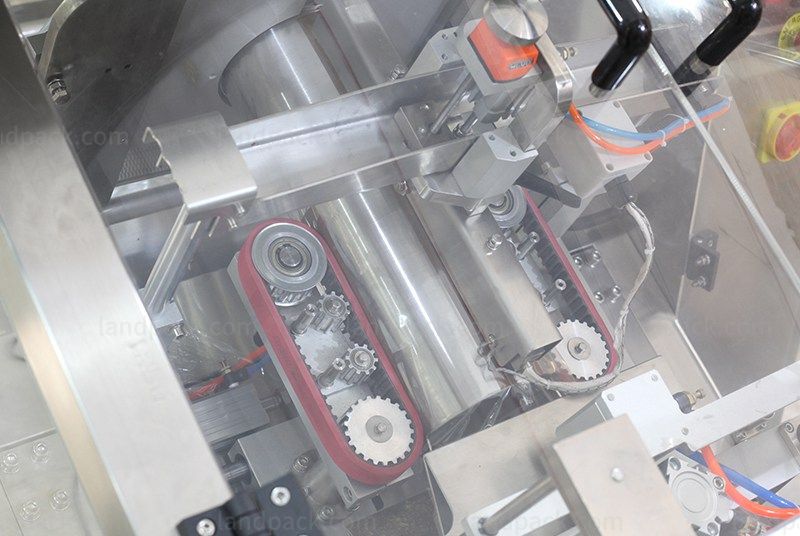

Servo driven film pulling system.

Photo sensor for automatic tracking eye marks.

Hot printer and film feeding system synchronous working together.

ModelLD-520HY
Frame structureStainless steel
Film widthMax.500mm
Bag width80-240mm
Bag length50-300mm
Packing speedMax. 80 bpm
Power supply220V, 50HZ, 4Kw
Air requests0.3m3/min, 0.6Mpa
Film roll diameterReel outer Φ16 In. max.   ; Reel core Φ3.0 In.
Film thickness0.04~0.12mm
Install PowerAC Single phase, 50Hz,   220V  (480V is available on optional)
Total Power4.0KW
Air  Consumption2CFM @6 bar
Dimensions165x11600x1500mm
WeightApprox. 680 kg

After receiving your inquiry,We will send you the quotation as soon as possible.
