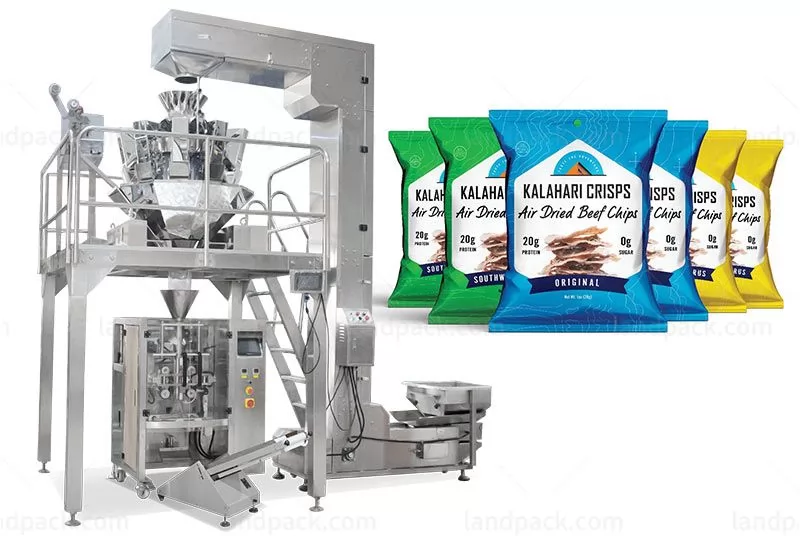

Full Automatic Beef Jerky/ Biltong Multihead Weigher Packing Machine

  • Application
  • Description
  • Parameter
  • Video


Full Automatic Beef Jerky/ Biltong Multihead Weigher Packing Machine, it is suitable for weighing and packing all kinds of grain material, sheet material, strip material and abnormity material which such as beef jerky, biltong, dog food, cat food, fish food, bird food, pet food,  candy, sunflower seeds, peanut, nuts, beans, potato chips, almond etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Full Automatic Beef Jerky/ Biltong Multihead Weigher Packing Machine

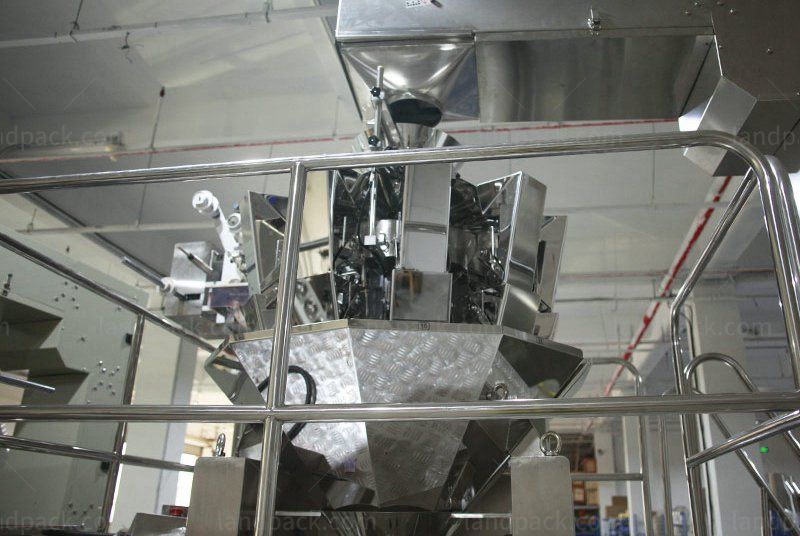

Multi-head combined weigher, improve metering speed and accuracy.

7inch touch screen, easy operation and multiple language for choice.

Imported PLC system, machine performance is stable and easy for parameters adjusting.

With a memory function for storage ten sets of parameters. Easy to change packing product.

Separate PID temperature controller, suitable for various packing materials.

Multi-union roll film pulling system make film running more smooth.

Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

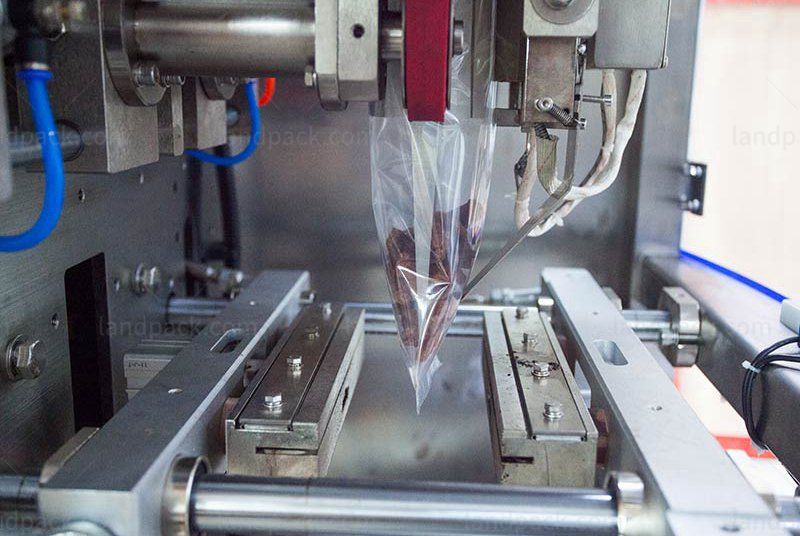

Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

Low loss, labor saving, easy for operation and maintenance.

Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L
