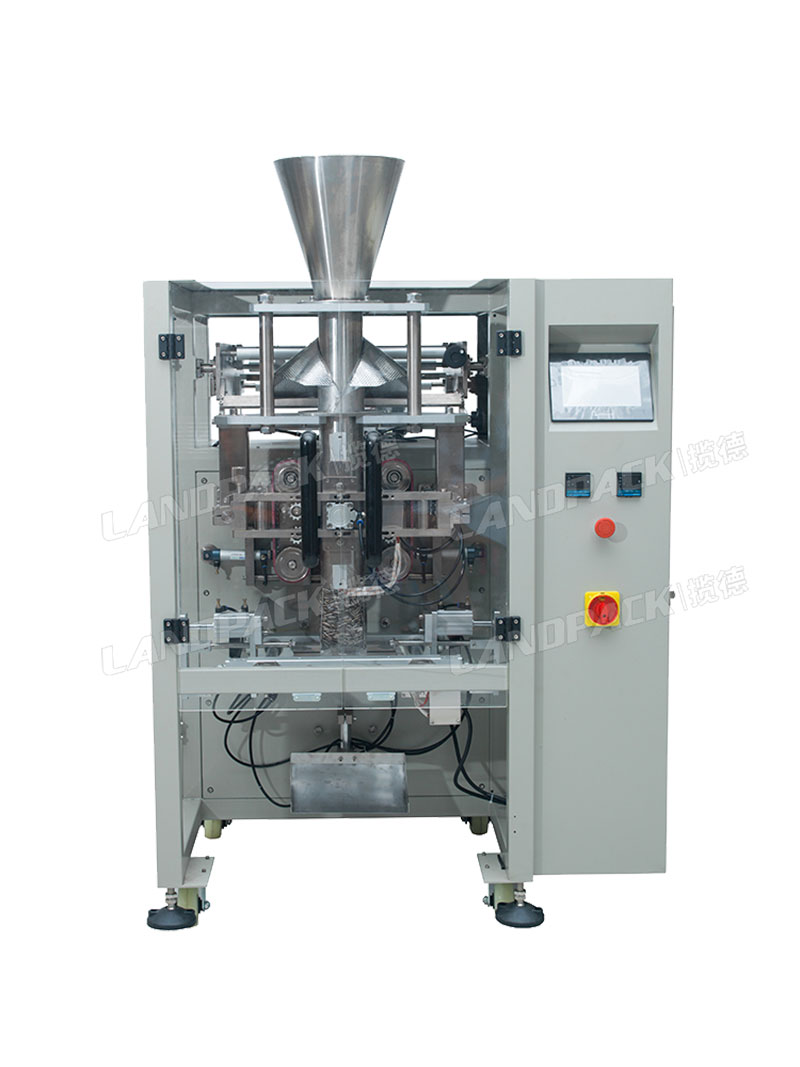

Landpack Sugar Vertical Packaging Machine

Oct. 06, 2022

sugar packing machine

Main feature

1. Imported PLC full computer control system, man-machine interface, touch screen operation is simple and intuitive;

2. Servo film transport system, accurate positioning, excellent performance of the whole machine, and beautiful packaging;

3. Perfect automatic alarm protection function to reduce the loss to the lowest level;

4. The machine can automatically complete the whole packaging process of measuring, feeding, filling and making bags, and date printing when matched with the measuring device;

5. Bag-making form: This machine can make pillow-shaped bags, vertical bags and hanging hole belts according to customer needs


Machine  modelLD-420
Max. width of film420mm
Bag length80-300mm
Bag Width60-200mm
Packaging speed20-60 bags/min
Packing film thickness0.04-0.12mm
Power supply specification220V 50Hz,2KW
WeightAbout 650KG
Machine size(L)1217*(W)1015*(H)1343mm

sugar packaging machines

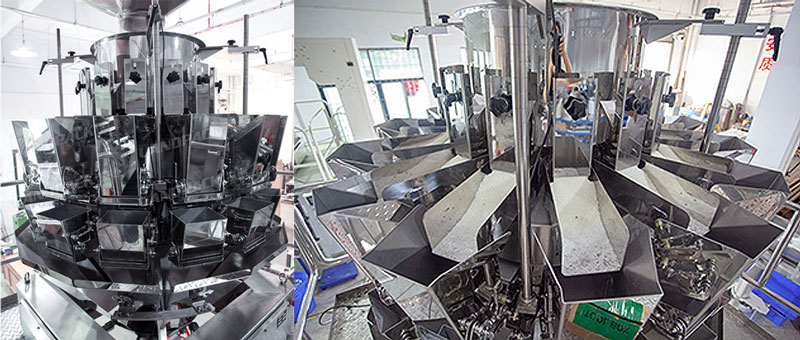

14-Head 1.6L Sugar Leakproof Weigher

sugar packing machine 1kg

1. Scope of application:

It is suitable for weighing all kinds of granular, bar and other materials. Such as melon seeds, almonds, pistachios, pine nuts, candy, puffed food,

Soybean food, quick-frozen food, pet food, snack food, hardware and daily chemical materials, etc.

2. Main functions:

* Factory parameter setting recovery function;

* The cleaning function can keep the hopper in the open state, which is convenient for daily cleaning and maintenance;

* With the function of counting grains;

* IP65 waterproof and dustproof design

* Non-conforming product exclusion function

* According to the material characteristics, the opening angle of the motor can be set arbitrarily

* 99 groups of products can be preset TY-1A-M10 10-head combination scale

* The weighing hopper is unloaded at one time to prevent the hopper from clogging

3. Features:

* The control system is modular, the equipment maintenance is convenient and fast, and the cost is low.

* Professional digital weighing module (A/D), high precision, good stability, A/D modules can be used interchangeably.

* The touch screen interface can set the operation authority hierarchically, which is convenient and easy to manage.

*The touch screen application software can be upgraded through a U disk.


sugar sachet packing machine

Main feature

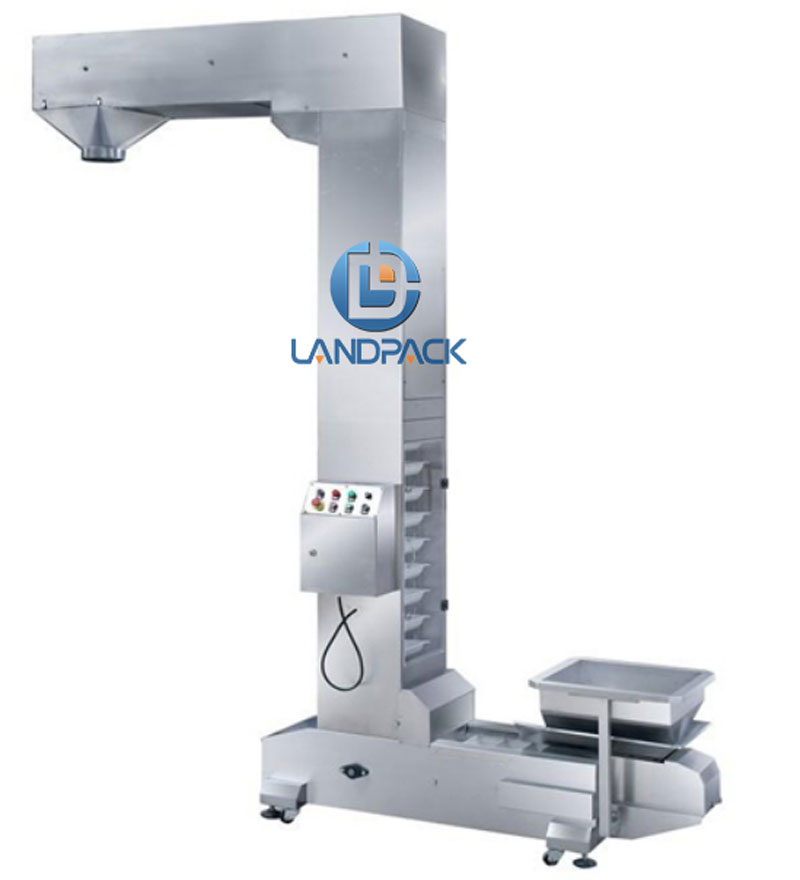

The elevator is suitable for vertical lifting of pellets in the grain, food, feed and chemical sectors. The hoist passes through the chain

The driver drives the hopper to lift, which is used for vertically conveying granular and small block materials. It has the advantages of large lifting capacity and high lifting degree.

Material Conveyor Advantages:

1. All gears are thickened, the operation is stable and the noise is small.

2. The chain is thicker and the operation is more stable.

3. The conveying hopper is a half-buckle type, which will not drop the material and the hopper.

4. Fully enclosed, clean and hygienic

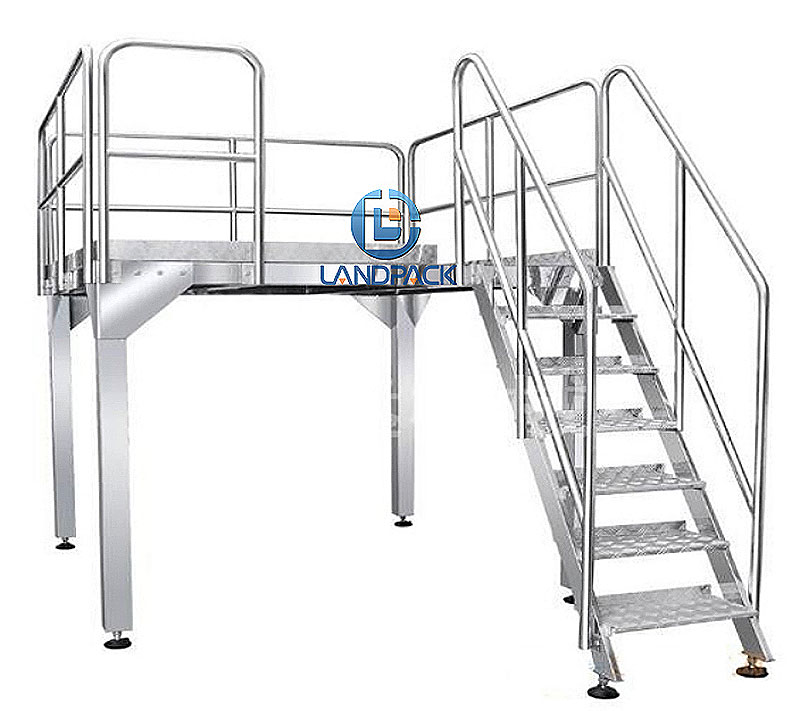

Support Platform

sugar packing machine price

Main Feature

* The platform is firm and not easy to shake, beautiful and generous, the table is made of a non-slip patterned aluminum plate, surrounded by guardrails, practical and safe.

* Technical parameters: Customized size according to the model, table width: 1.8m*1.8m, 2m*2m, height: 1.8m, 2m, 2.2, 2.4m

LANDPACK will be your best partner to provide you a reasonable packing solution.
