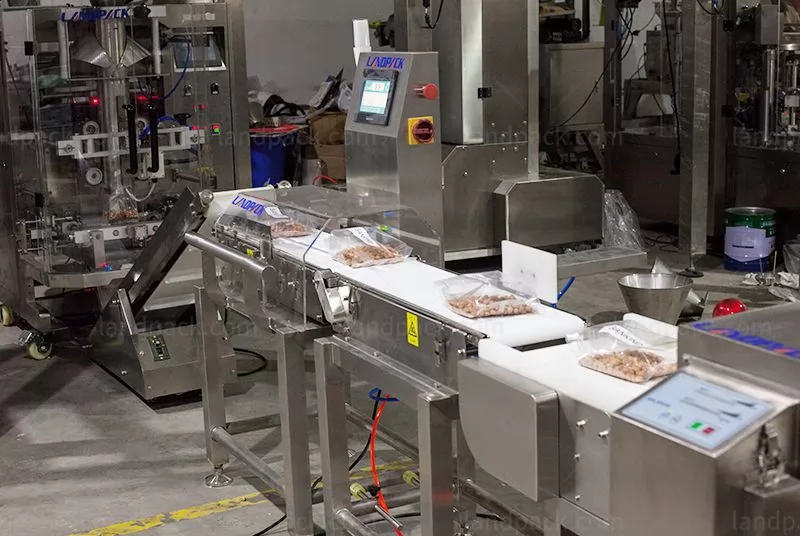

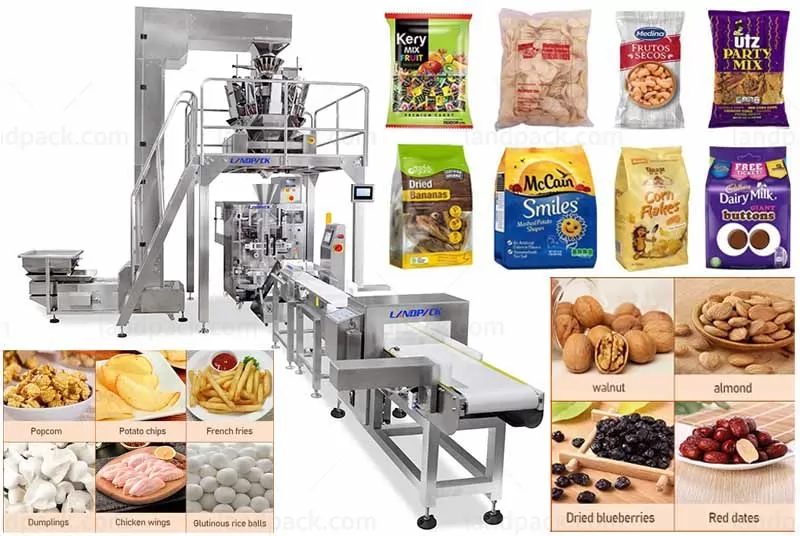

Automatic Pouch Packing System With Labeling Machine Metal Detector And Weight Selection Scale

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic Pouch Packing System With Labeling Machine Metal Detector And Weight Selection Scale, it is Suitable for a variety of high-value products, such as nuts, dried meat, frozen food, dried fruits, meat, candy, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Snacks Pouch Packing Machine With Labeling Machine Metal Detector And Weight Selection Scale

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

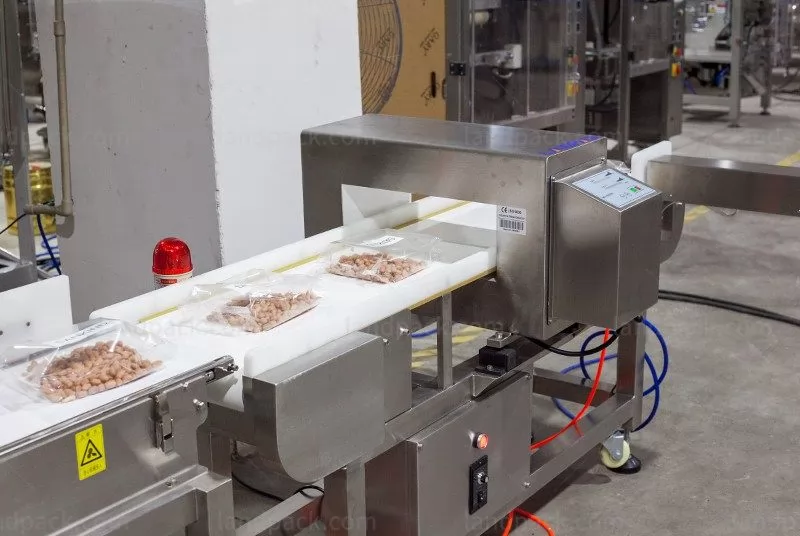

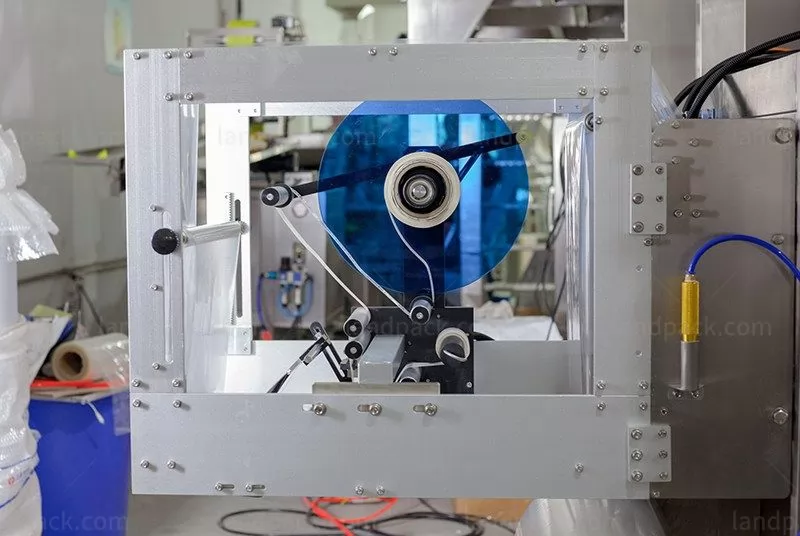

11.Equipped with a labeling machine, metal detector and a weight selection scale to ensure the safety of packaged products and control weight errors.

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L
