Automatic Vertical Food Packaging Line Equipment

  • Application
  • Description
  • Parameter
  • Video

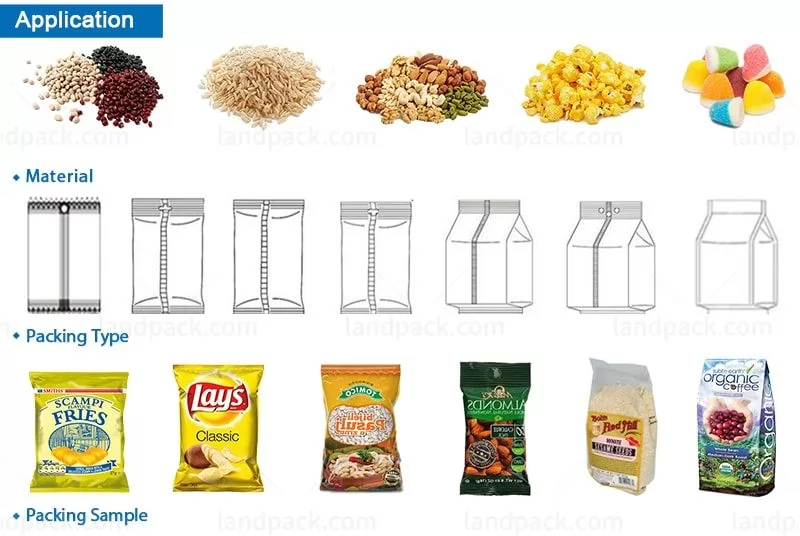

Application:

Suitable For Packing Puffed Food, Potato Chips, Snacks, Popcorn, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

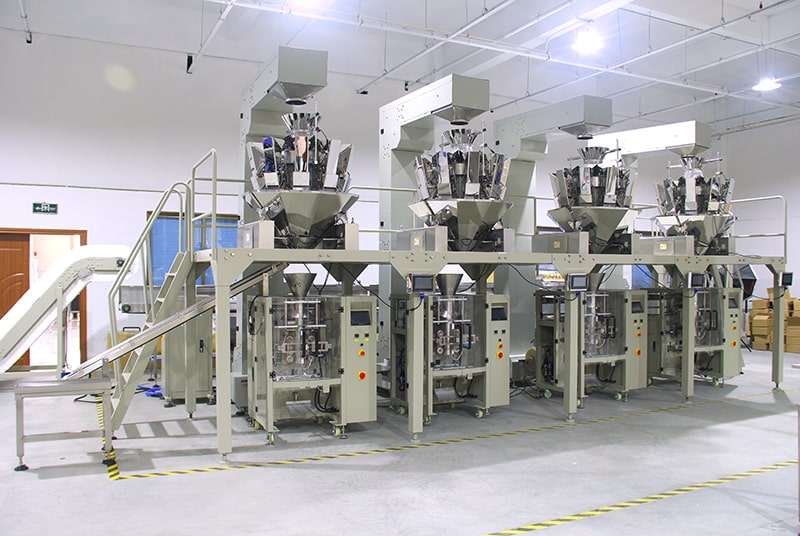

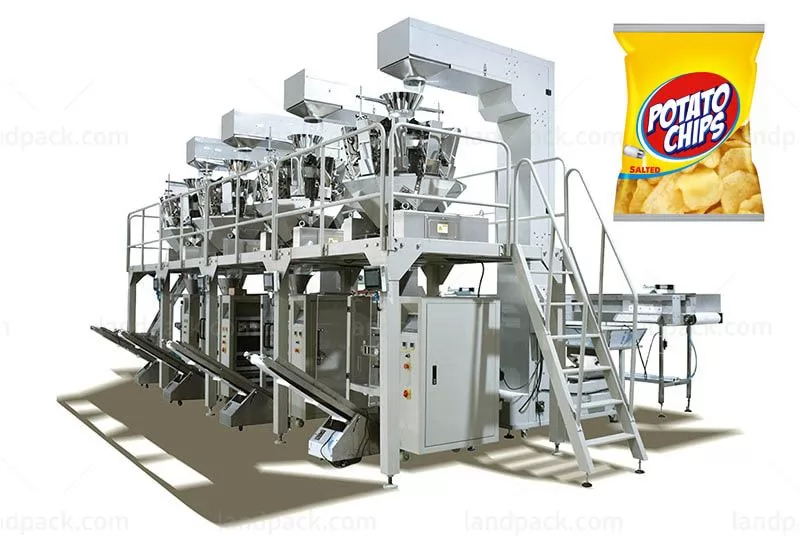

Packing Exambers:Automatic Potato Chips/ Popcorn/ Snacks Vertical Packing System

This packaging solution is suitable for large production packing.

Economical,save cost,small footprint.

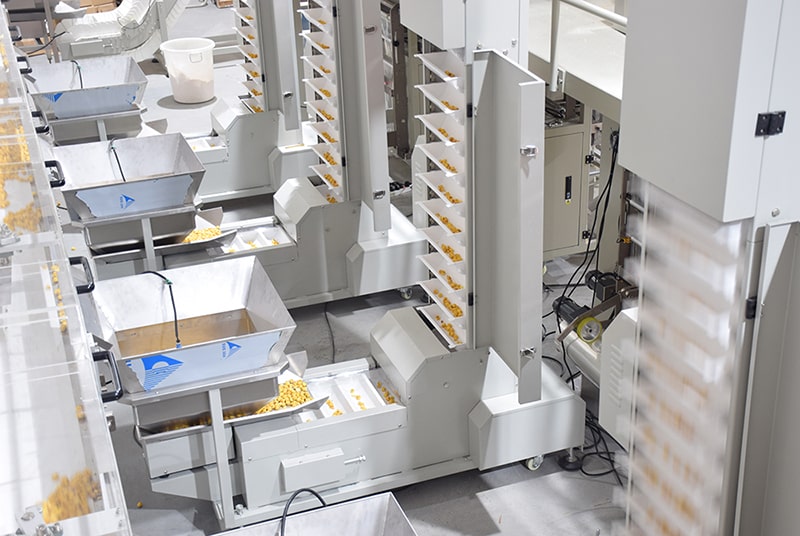

Horizontal rewind conveying the material, with large transportion.

Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.

Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

Standard positioning with imported servo film transporting system and mark sensor.

With auto warning protection function to minimize loss.

High precision, high efficiency without crash the materials.

ModelLD-420ALD-520ALD-720A
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option DeviceTwo synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device.

After receiving your inquiry,We will send you the quotation as soon as possible.
