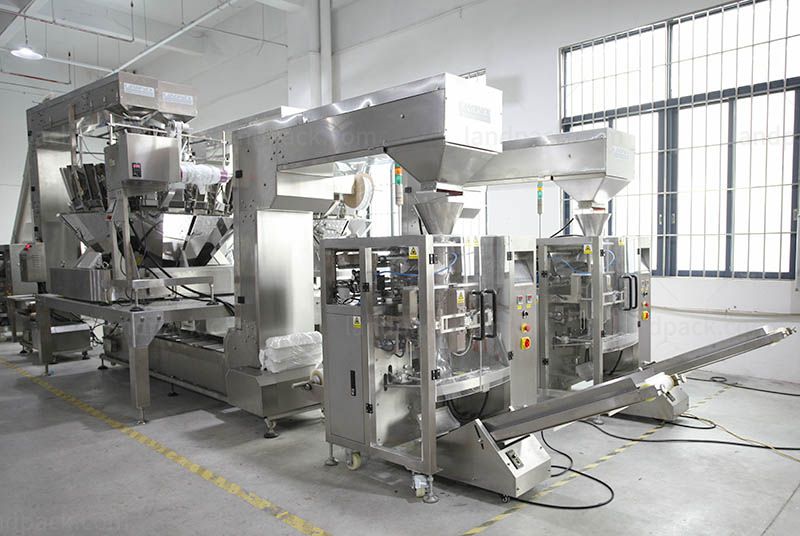

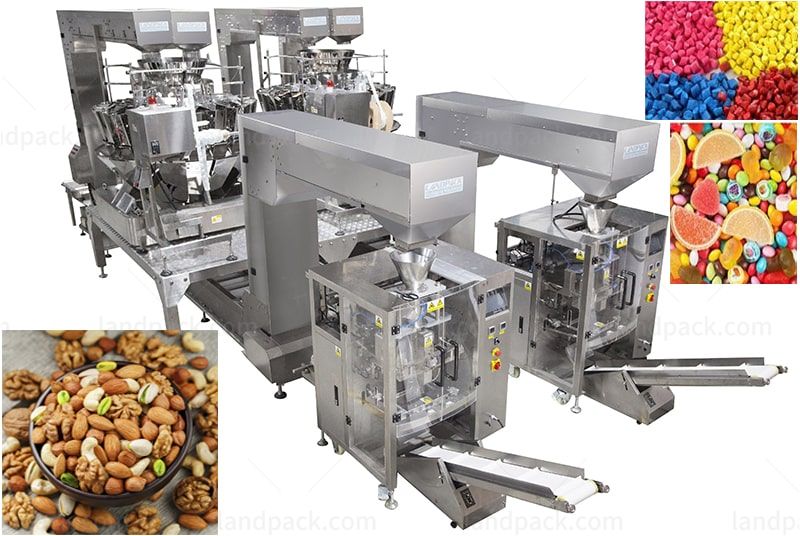

Automatic Weighing And Packing System For Mixed Granular

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for weighing and packing granular materials with good fluidity. It can meet the requirements of two in one, three in one, four in one, and weighing mixing of various formulas.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Weighing And Packing System For Mixed Granular

1.This packaging solution is suitable for large production packing.

2. Economical,save cost,small footprint.

3. Horizontal rewind conveying the material, with large transportion.

4. Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.

5. Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

6. Standard positioning with imported servo film transporting system and mark sensor.

7. With auto warning protection function to minimize loss.

8. High precision, high efficiency without crash the materials.

ModelLD-420A (single host)LD-520A (single host)LD-720A (single host)
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option DeviceTwo synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device.

After receiving your inquiry,We will send you the quotation as soon as possible.
