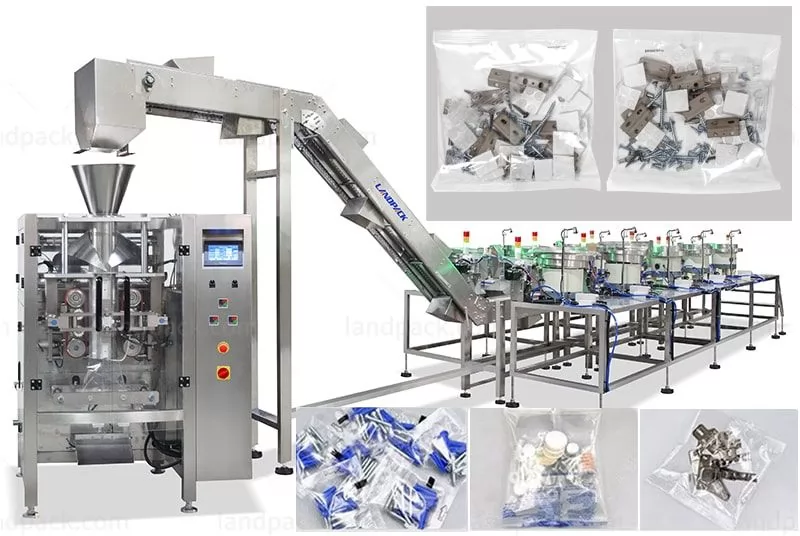

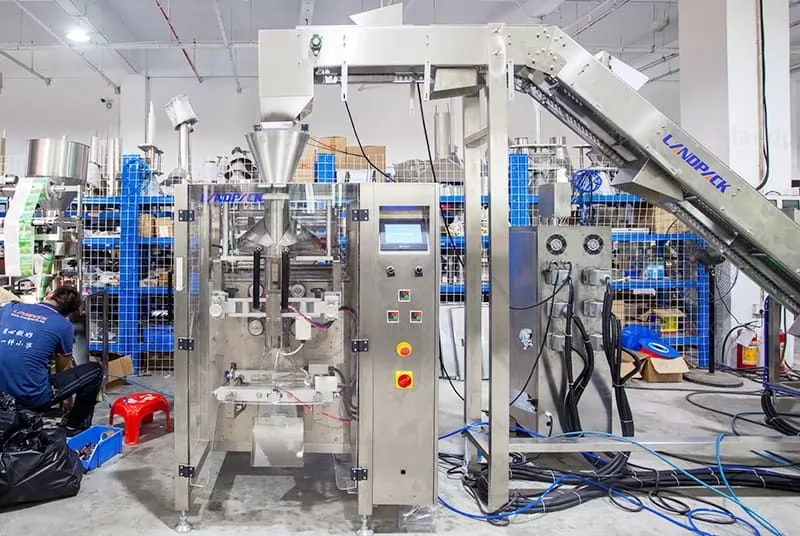

Full Automatic Multi-Material Counting Packing System

  • Application
  • Description
  • Parameter
  • Video

Application:

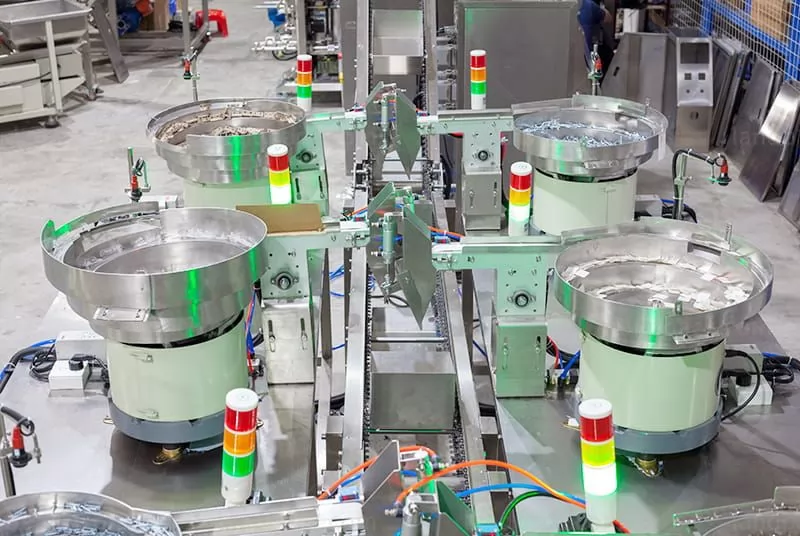

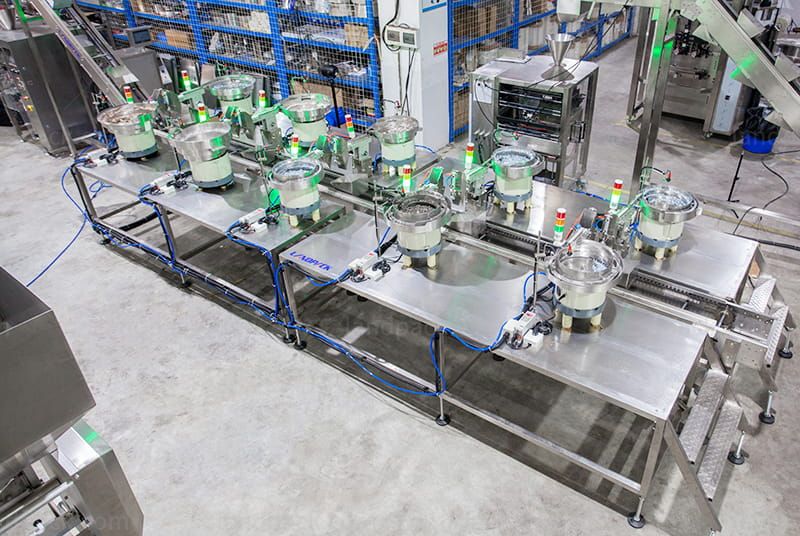

Automatic multi-material counting packing system is suitable for variery of hardware parts and plastic parts. For example hardware parts, nuts, bearing, bolts, plastic parts, screws, fasterner, bearings etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

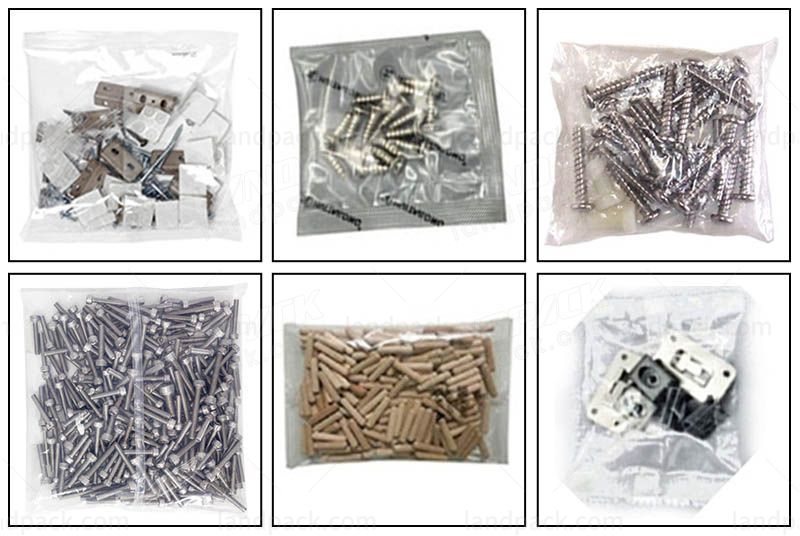

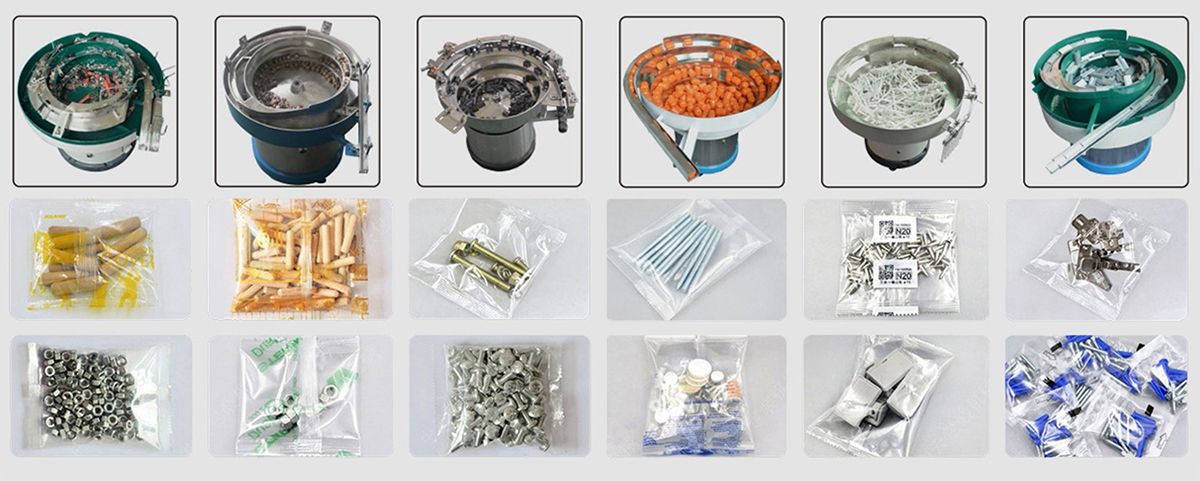

Packaging Exambers:应用图通用2.jpg

1. PLC control system, easy operation, applicable to single items packing and mixed multi-items packing.

2. Smooth and elegant bag shape, high efficiency and durability.

3. Control by 7" industrial PC touch screen, easy operation and multiple language for choice.

4. A single species of single-dish measurement of screws, screw specifications for packaging the same time be supporting the use of multiple vibrating plate.

5. High-precision weighing module with light curtain points.

Model
LD-420B
Film Width
60-280mm
Film Thickness0.03-0.08mm
Packaging Speed
1-80bags/min
Bag Width
20-140mm
Bag Length
30-160mm
Machine Size
4550(L)*800(W)*1350(H)mm
Machine Power
220V380V, 50Hz/60Hz, 1.5kw
