Application:

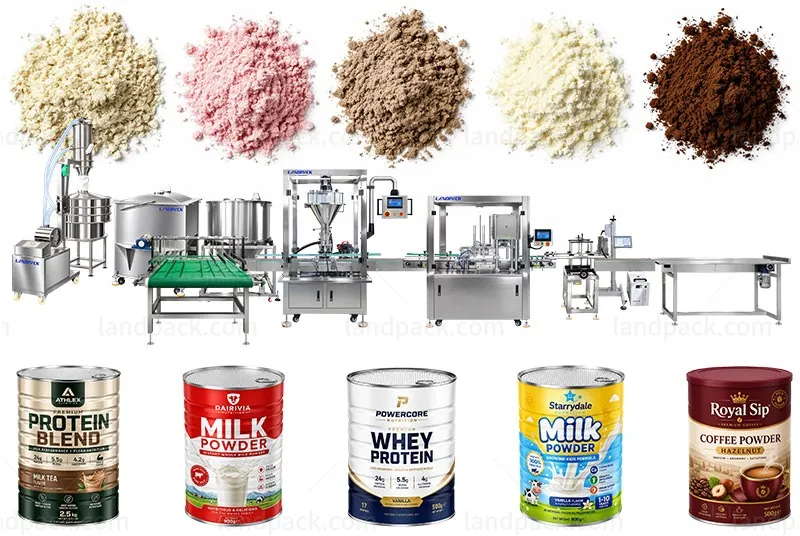

This protein powder filling line packs protein powder, milk powder, infant formula powder, nutrition powder, coffee powder, meal replacement powder, and other dry powders into cans or tins. The single-head auger filler meters the powder before the vacuum nitrogen seamer removes air, introduces nitrogen, and closes the can. A downstream laser coder adds production or traceability information to the finished container.
Packaging Type:
The protein powder filling machine mainly handles round metal cans, tin cans, composite cans with suitable seaming ends, powder cans with metal seamed lids. Change parts can match different can diameters, heights, filling weights, and lid specifications.
Workflow:
1. Empty Can Feeding, 2. Can Positioning, 3. Single-Head Auger Metering, 4. Powder Filling, 5. Vacuum Processing, 6. Nitrogen Flushing, 7. Can Seaming, 8. Can Clamping, 9. Laser Coding, 10. Finished Can Collectio
Machine Structures:
Features:

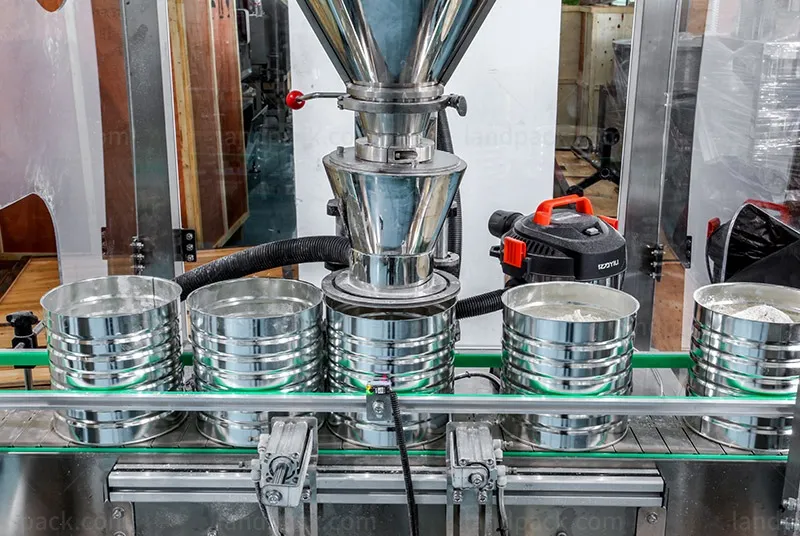

1. Single-head auger filler meters protein powder and other fine dry powders
2. Servo-controlled screw dosing adjusts for different filling weights
3. Filling accuracy can reach ±1% under specified product and machine settings

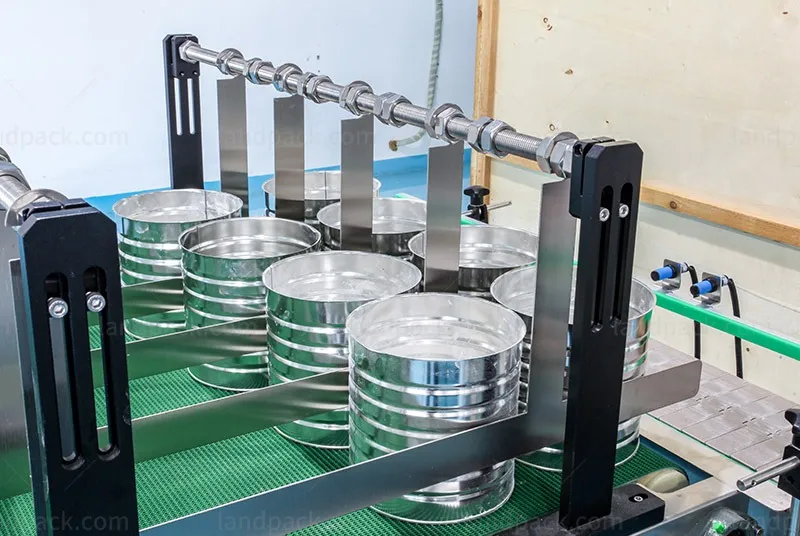

4. Automatic can feeding reduces manual container placement

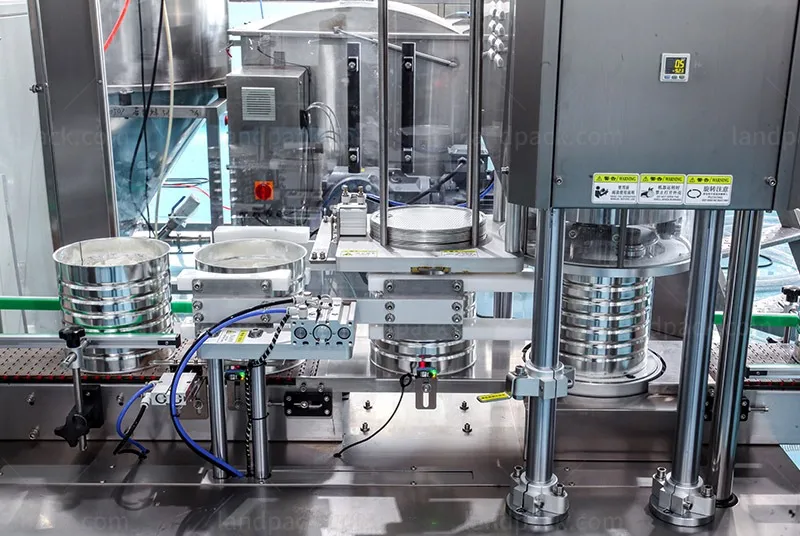

5. Vacuum and nitrogen seaming combines gas handling and can closing in one section
6. The nitrogen process can target residual oxygen below 3% after machine setup and process validation; actual results depend on product, headspace, vacuum level, nitrogen supply, and seaming conditions
7. Can clamping belt keeps containers controlled during laser marking
8. Fiber laser coder produces durable, non-contact date and batch marks without ink consumables
9. Filling settings can change for different protein powder weights and can sizes
10. PLC and touchscreen can manage filling parameters and production settings on the matching automatic configuration
11. The wholesale protein powder filling machine can connect with can cleaning, scoop feeding, checkweighing, plastic lid pressing, and downstream case packing when required
| Automatic Bottle Feeder | ||
| Machine Model | LD-LP800N | |
| Power Supply | 220V/110V, 50-60Hz, 200W | |
| Turntable Diameter | 800mm | |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle Height | 30-320mm | |
| Working Speed | 40-60bottles/min(depending on bottle size) | |
| Package Size | 1230*1010*1260mm | |
| Gross Weight | 141kg | |
| Automatic Powder Filling Machine | ||
| Model | LFP-01(Single Head) | LFP-01(Dual Head) |
| Filling Weight | 10-5000 g (by changing auger) | 10-5000 g (by changing auger) |
| Bottle Diameter | Φ30-Φ140 mm (customizable) | Φ30-Φ140 mm (customizable) |
| Bottle Height | 50-200 mm (customizable) | 50-200 mm (customizable) |
| Capacity | 10-20 bottles/min | 20-40 bottles/min |
| Filling Accuracy | ≤500 g: ±1%>500 g: ±0.5% (varies by material) | ≤500 g: ±1%>500 g: ±0.5% (varies by material) |
| Power Consumption | 2.5 kW | 5 kW |
| Hopper Capacity | 50 L | 50 L |
| Power Supply | 220 V, 50 Hz | 220 V, 50 Hz |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Machine Weight | 350 kg | 550 kg |
| Vacuum can seaming machine with nitrogen flush | ||
| Bottle type | Round, square bottles, etc need to be customized. | |
| Bottle diameter | 50-120cm(can be customized) | |
| Bottle height | 50-150mm(can be customized) | |
| Speed | 5-8BPM(it depends on product) | |
| Caps feeding type | ausomtaic lids feeding | |
| Machine voltage | 220V(can be customized) | |
| Machine size | 2000*1000*1700mm | |
| Machine weight | 550kg | |
| Laser printer | ||
| Print range | 100*100mm | |
| Positioning way | Infrared focusing | |
| Focuslens | focal length 150mm | |
| Speed | Max10000mm/s(can be customized) | |
| Laser | fiber laser generator | |
| Machine voltage | 220V(can be customized) | |
| Machine size | 825*545*1425mm | |
| Machine weight | 60kg | |
| Parameter | Specification | |
| Machine Name | Powder Storage Hopper with Vibrating Sieve | |
| Application | Powder materials | |
| Hopper Capacity | Customized | |
| Sieve Mesh Size | Customized according to material | |
| Feeding Method | Automatic conveying | |
| Sieve Type | Vibrating sieve | |
| Contact Material | Stainless steel | |
| Discharge Method | Continuous discharge | |
| Voltage | Customized | |
| Connection | Can be connected with powder filling machine | |
