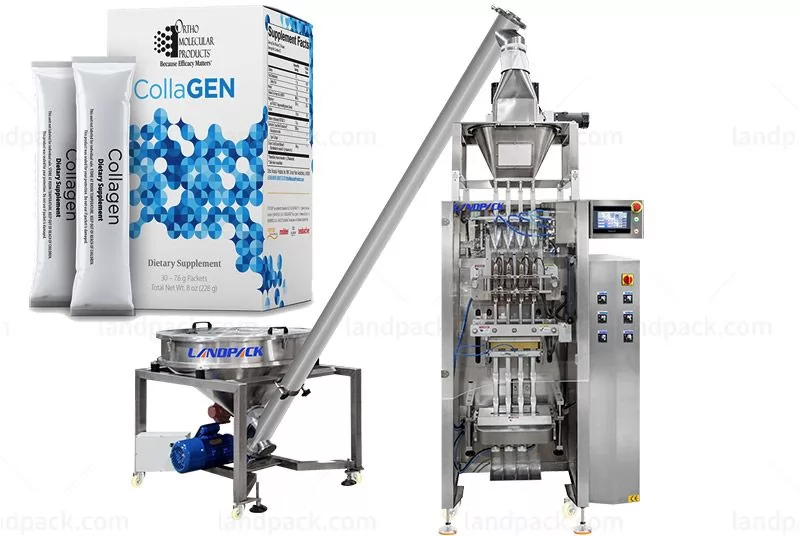

Multi Track Collagen/ Protein Powder Stick Packing Machine Connectable Cartoning Machine

  • Application
  • Description
  • Parameter
  • Video


Multi track collagen/ protein powder stick packing machine connectable cartoning machine, it is suitable for many kinds of powder products, such as health powder, protein powder, collagen powder, medicine powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc..

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Multi Track Collagen/ Protein Powder Stick Packing Machine Connectable Cartoning Machine

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

 Model LD-280BF LD-560BF
 Lane number 4-6 Line 8-12 Line
 Filling Method Auger filling by servo motor
 Capacity Max.35 cycle/ min
 Sachat Size L:50-180mm; W:17-30mm L:50-180mm; W:17-30mm
 Film weidth & Thickness Max.280mm, 0.07-0.10mm Max.560mm, 0.07-0.10mm
 Sealing type Back sealing/Stick bag Back sealing/Stick bag
 Cutting type 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
 Air & Powder 0.8Mpa 0.8m3/min; 3.5kw  0.8Mpa 0.8m3/min; 5.5kw
 Dimension & weight 1385*918*2005mm;350kg 1685*1300*2005mm;550kg
