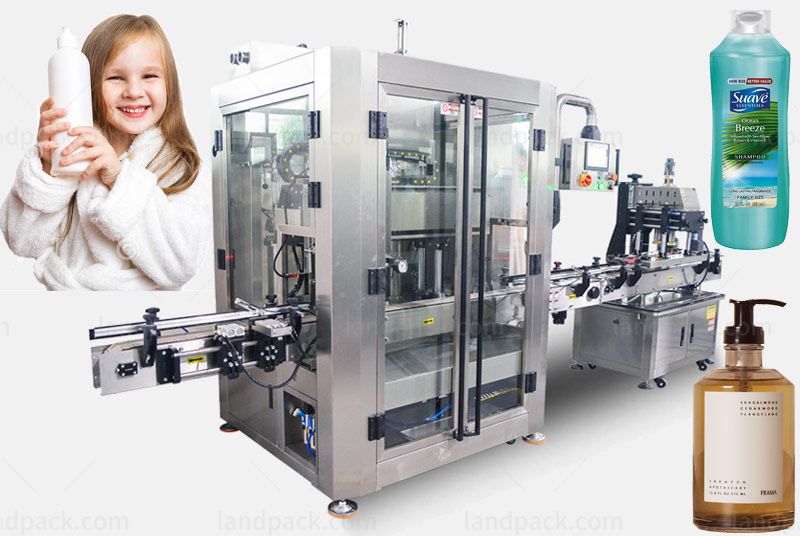

Hight Speed Mobile Tracking Type Quantitative Shampoo Filling Capping Machine

  • Application
  • Description
  • Parameter
  • Video

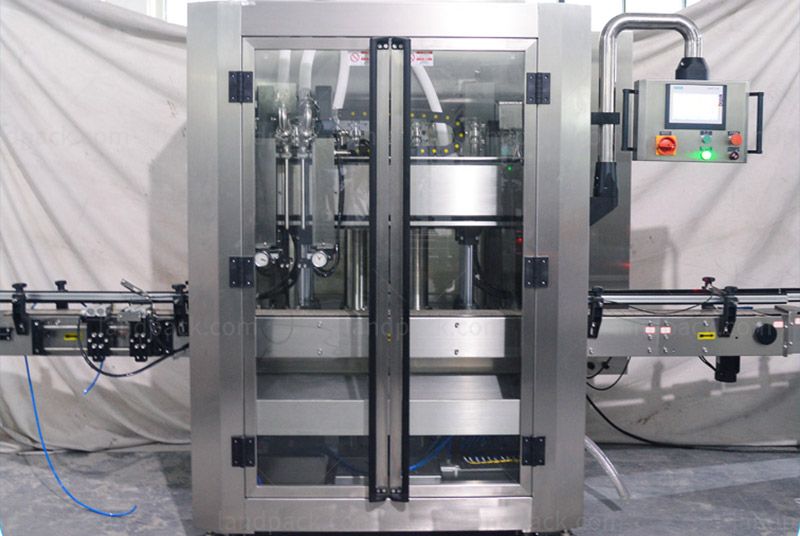

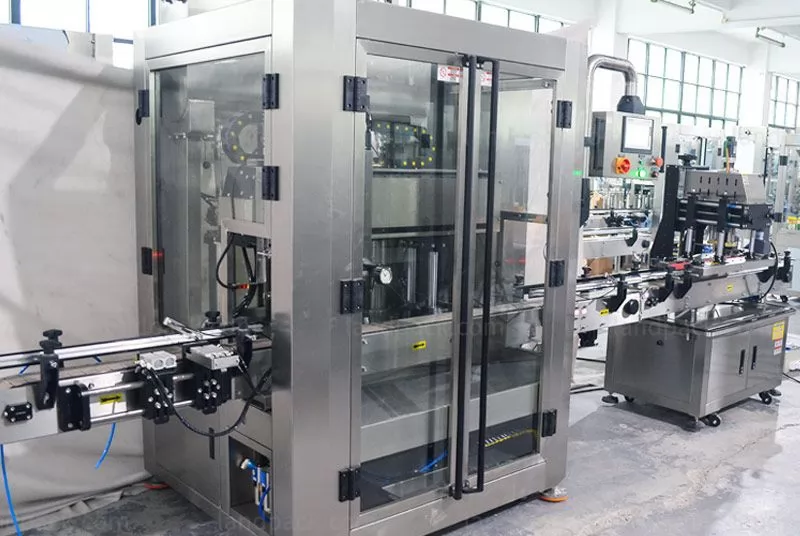

Follow-up high-speed double-head filling machine ,operated by chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo following system, electric lifting adjustment mechanism, waterproof electric cabinet, touch-type man-machine Interface, etc.


Can be used for automatic filling equipment of bottles of different specifications.This filling machine widely used in filling viscous liquids, such as edible oil, lubricating oil, honey,cream,shampoo,daily chemicals and other liquid products.

Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:888.jpg

1. Bottle-Free Filling: Capable of filling without bottles and even upside-down bottles.

2. One-Button Adjustment: Features a one-button adjustment system that can store up to 40 different formulas.

3. Full-Circle Cleaning: Offers full-circle cleaning with no dead angles.

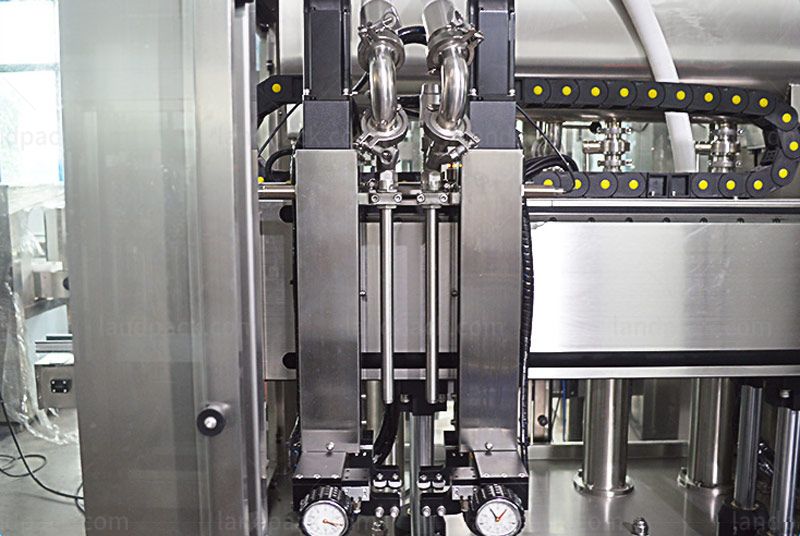

4. Submerged Filling Functionality: Configurable with submerged filling functionality to prevent bubbles during the filling process.

5. High-Filling Precision: Achieves high precision filling and can be configured with a vacuum suction device for equal liquid level filling.

6. Double the Speed of Linear Filling: Faster than linear filling with a mobile filling system.

7. Special Material Bearings, Shafts, and Rails: Low noise, wear-resistant, and durable.

8. Servo Motor Control for Filling, Lifting, and Tracking: Achieves ±1% filling accuracy.

9. Compatible with Multiple Bottle Shapes: Can automatically adjust to different bottle shapes.

10. Efficient and Reliable: Designed for efficient and reliable liquid filling.

Filling head2 Heads
Piston cylinder8 cylinders
Metering wayPiston filling
Driven motorfrequency conversion
Filling range50-1000ml(can be customized)
Filling speed35-45BPM(it depends on filling material and volume)
Machine bodySS 304
Machine voltage220V(can be customized)
Machine weight400kg
Machine size(L*W*H)2000*1000*1900mm

After receiving your inquiry,We will send you the quotation as soon as possible.
