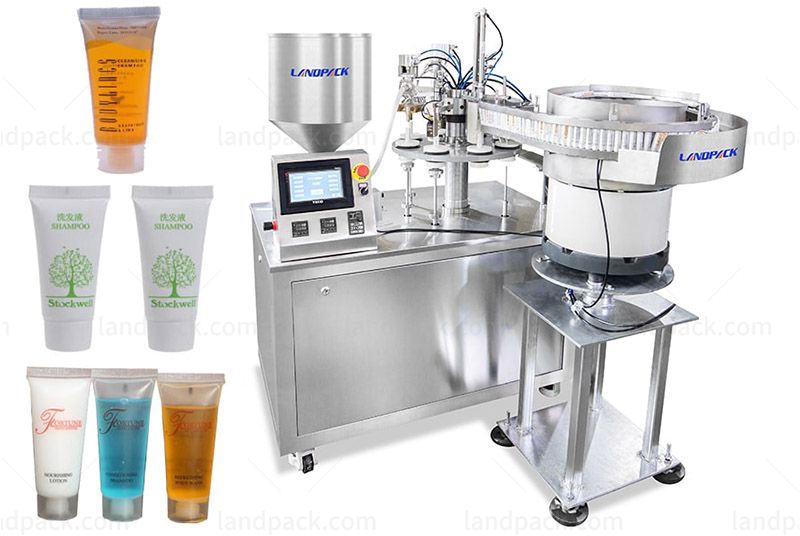

Full Automatic Shampoo Tube Filling And Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Scope of application: used in packaging in medicine, daily chemical, food, chemical and other industries, such as shampoo, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste-like materials Loading and sealing.

Filling container: plastic tube; composite tube.

Optional supporting devices: three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Full Automatic Shampoo Tube Filling And Sealing Machine

1. The filling speed and measurement accuracy are convenient and adjustable, with high adjustment accuracy and good stability;

2. The replacement of the base is suitable for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm.

3. All parts of the machine that contact materials are made of stainless steel SUS304;

4. The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosity

5. The typing station automatically prints the word code on the position required by the craft;

6. Photoelectric benchmarking workstation, with high-precision probes, stepping motors and other control patterns in the correct position.

7. It adopts PLC console, which is portable and convenient for brief introduction;

ModelLFF-FW-00
Yield20-35 pcs/min
Pipe diameterΦ10mm-Φ50mm(customizable)
Tube height20mm-250mm(customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension1280mm*10100mm*1700mm(L*W*H)
Equipment Material304
Weight600KG
