Full Automatic Soft Tube Filling And Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

 Scope of application: Suitable for packaging in medicine, daily chemical, food, chemical, cosmetics and other industries, such as ointment, shampoo, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste materials Filling and sealing.

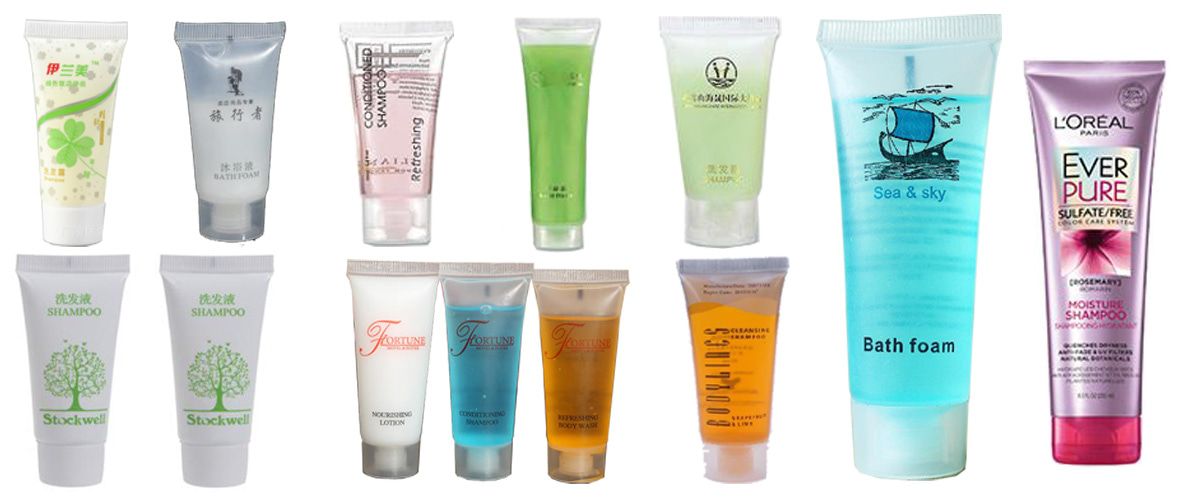

 Filling container: plastic tube; composite tube.

 Optional supporting devices: three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

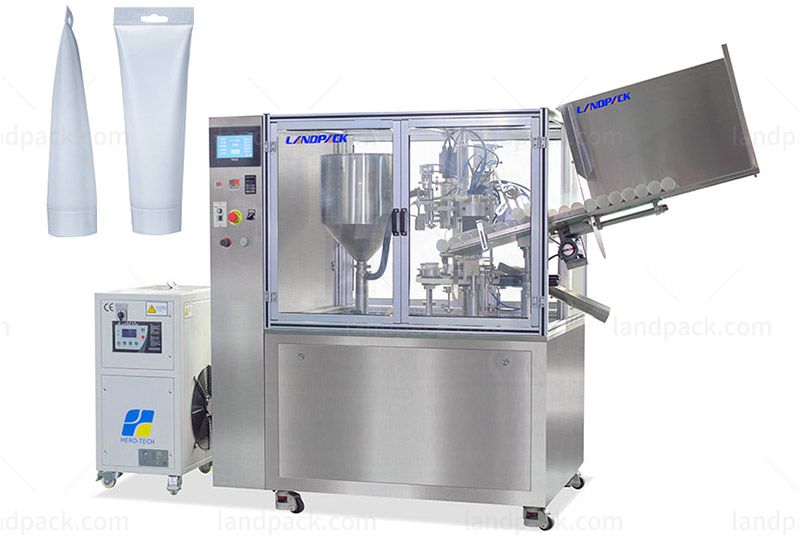

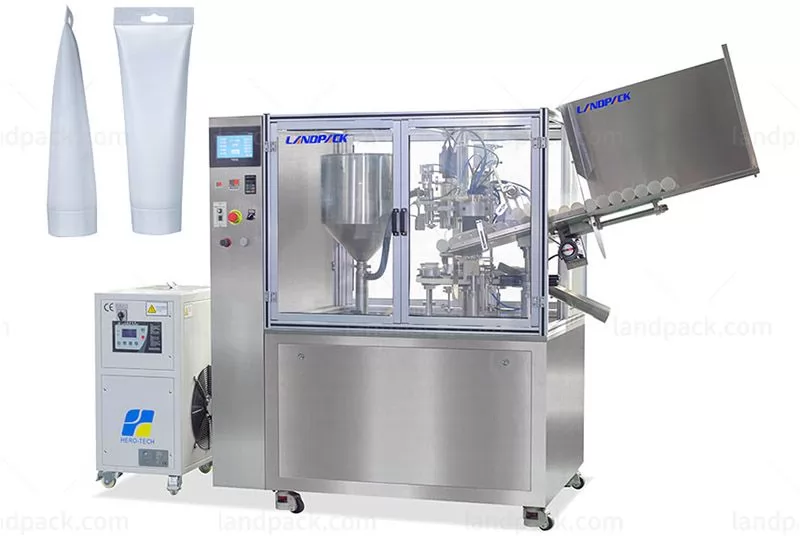

Packing Exambers:Full Automatic Shampoo Tube Filling And Sealing Machine

 1. The machine adopts a fully enclosed dust cover, the body is made of SUS304 material, and the appearance is unique and beautiful;

 2. The replacement base can be used for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm;

 3. Photoelectric benchmarking workstation, with high-precision probes, stepping motors and other control patterns in the correct position;

 4. The filling speed and measurement accuracy are easily adjustable, with high adjustment accuracy and good stability;

 5. The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosities;

 6. The internal heating is heated by Leister hot air gun, while the external water cooling device is configured to cool down, making the sealing more beautiful;

 7. The code typing workstation automatically prints the word code on the position required by the process;

 8. All parts of the machine contacting materials are made of stainless steel SUS304;

 9. Adopt PLC control system, simple operation, intuitive and convenient, complete functions, stable operation.

ModelLFF-GFW-008
Yield20-40 pcs/min
Pipe diameterΦ10mm-Φ50mm(customizable)
Tube height20mm-250mm(customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension2180mm*930mm*1870mm(L*W*H)
Equipment Material304
Weight700KG

After receiving your inquiry,We will send you the quotation as soon as possible.
