Application:
It is suitable for all kinds of food packaging, such as coffee beans, frozen food, biscuits, cereals, nuts, powdered materials, candy, popcorn, dried fruits, pet food, potato chips, chocolate, etc.
Sutable Pouch: Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Compact design & Integrated single workstation filling machine.
2. Compatible for Bigger Pouch Bag Filling Max Up to 5kg/bag.
3. Adopts 2 heads 7.5 Ltr (Hopper) Linear weigher.
4. Election SMC brand Vacuum suckers to ensure bag feeding, opening successfully.
5. PLC (Mit Japan) program control, stably and sustainability use.
Work Flow:
1. Automatic Feeding Material
2. Two Heads Electronic Linear Scale
3. Feeding Moisture Proof Packs

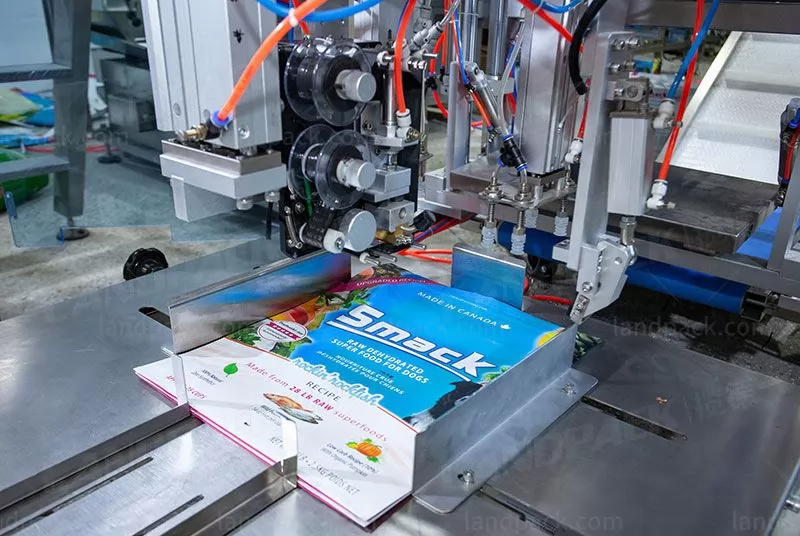

4. Ribbon Date Code Printer
5. Vacuum Suckers giving & Opening Bag

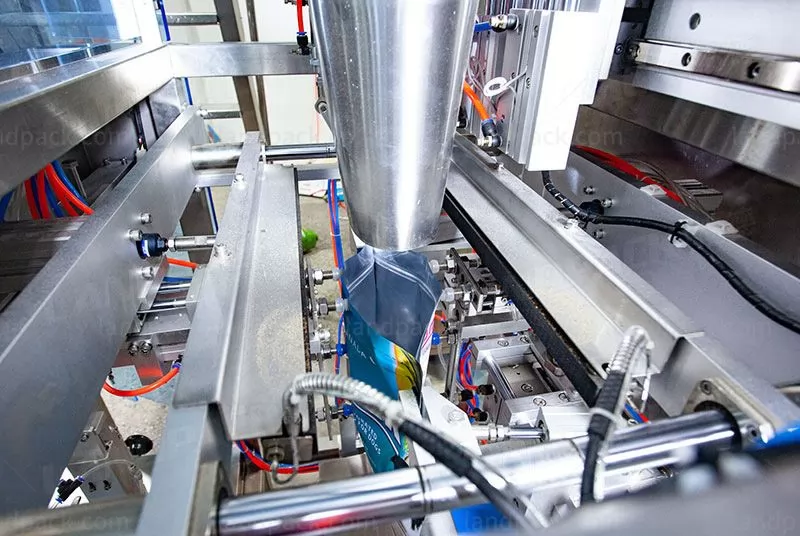

6. Automatic weighing filling material into pouches
7. Automatic heat sealing pouches-finished products
| Type | Automatic Mini Doypack Premade Zipper Pouch Granular Packing Sealing Machine | ||
| LDB-200 | LDB-300 | LDB-430 | |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0~60bags/min | 0~15bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5--20mm) can be customized | ||
| Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
