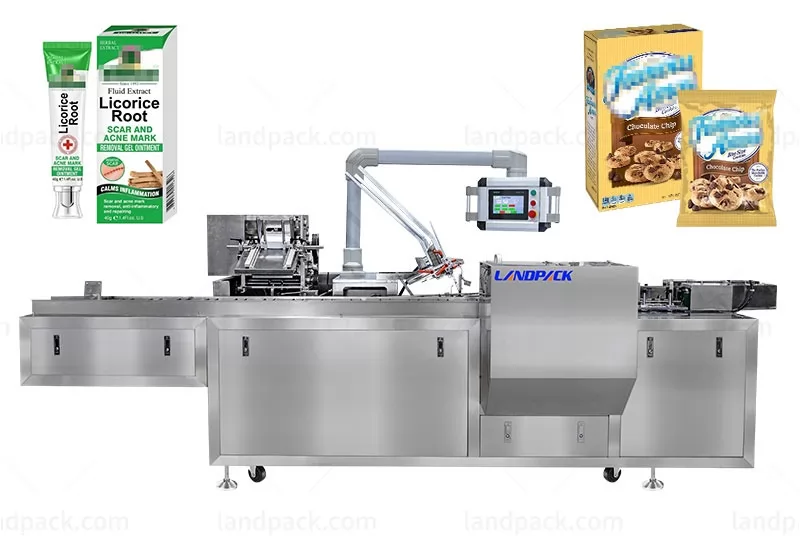

Fully Automatic Horizontal Cartoning Machine

Application:
This cartoning machine completes product feeding, leaflet insertion, carton erecting, loading, and carton closing in one continuous and stable process, widely used for cartoning cosmetics such as creams, lotions, facial cleansers, perfumes, and skincare sets, toothpaste, soap bars, wet wipes, detergents, and household cleaners.

Package Type:

Designed for carton / case / box packaging, this fully automatic horizontal cartoning machine supports end load /side load / top load cartons with tuck-in or glue sealing. It is compatible with paperboard cartons in various sizes and thicknesses

Suitable Products:
This Horizontal Cartoning Machine is widely used for automatically loading tube, sachet, stick pack, pouches, bottles, and cans into pre-formed cartons with functions including leaflet insertion, carton closing, and finished product output. Typical applications include
- Cosmetics: toothpaste, facial cleanser, hand cream, sunscreen, eye cream, and cosmetic ointments.
- Daily necessities: shampoo, body lotion, hair dye creams, household gel products, and personal care creams.
- Pharmaceutical & health industries: ointments, capsules, health supplements.

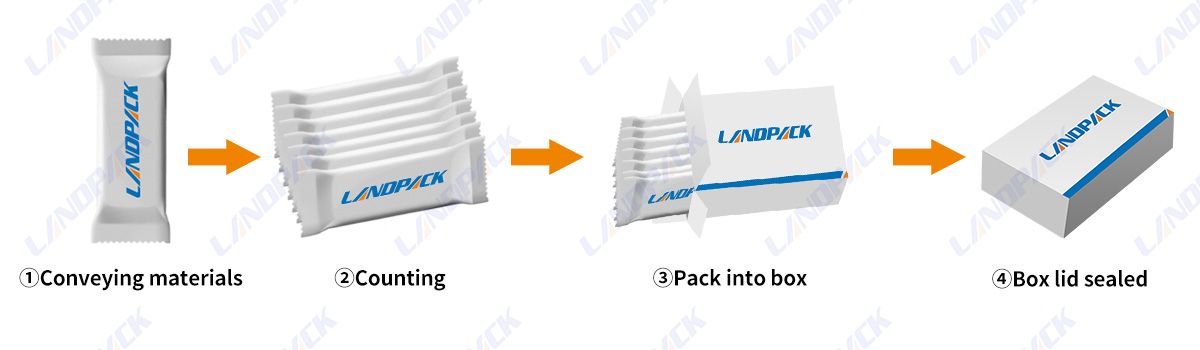

Workflow:
1. Product Feeding: Products are automatically conveyed and aligned for stable and continuous infeed.
2. Leaflet Insertion: Instruction leaflets are accurately inserted into the carton as required.
3. Carton Erecting: Flat cartons are picked up, opened, and positioned by the cartoning mechanism.
4. Product Loading: Products are smoothly pushed or placed into the erected cartons.
4. Carton Closing: Cartons are folded and sealed to form a neat and secure package.
4. Finished Carton Output: Completed cartons are discharged for downstream packing or palletizing.

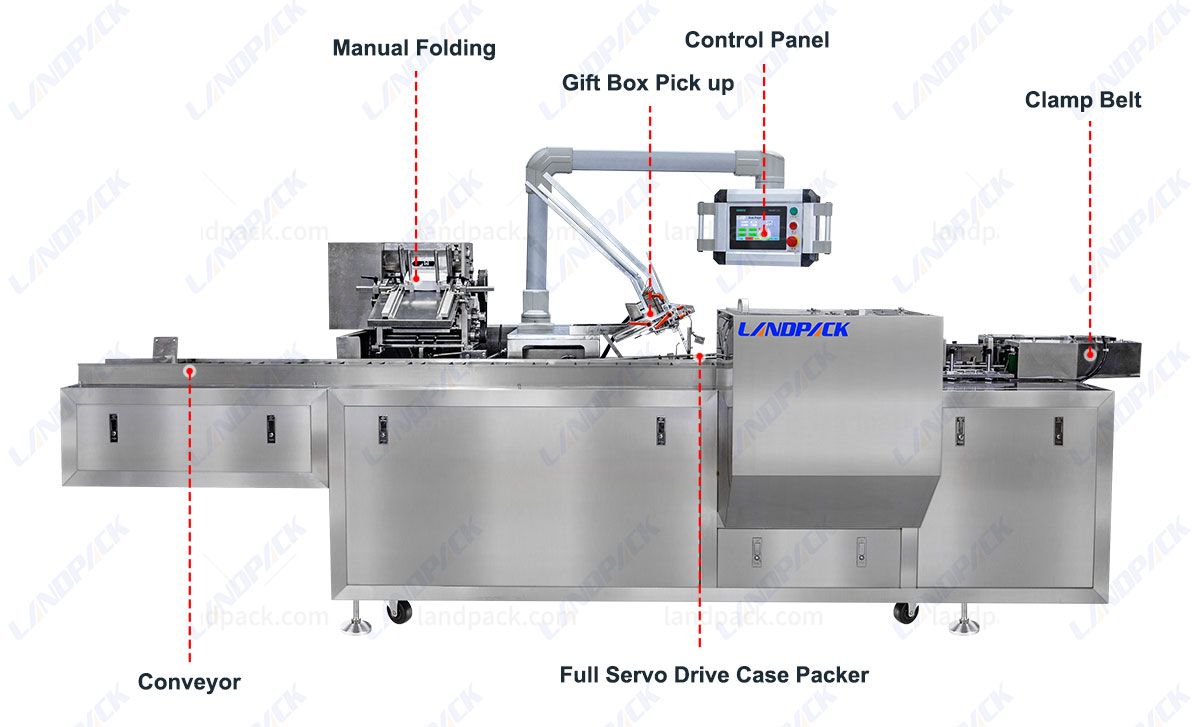

Machine Structure Overview:

1. Manual Folding

2. Control Panel

3. Gift Box Pick up

4. Clamp Belt

5. Conveyor

6. Full Servo Drive Case Packer

Feature:

1. Fully automated horizontal cartoning that incorporates cart erecting, product loading leaflet insertion, as well as sealing all in one seamless process.

2. PLC and HMI control system that includes recipe storage, quick changeovers, and real-time parameters adjustment.

3. Product compatibility is high, suited for bottles, tubes and blisters. It is also suitable for sachets, blisters and many other items that are regular in shape.

4. Automatic rejection and detection of the missing product or leaflet to ensure accuracy of packing.

5. Secure and reliable operation, with safety features such as overload alarms, fault alerts and stop-by-automatic functions.

6. Simple operation and maintenance thanks to modular design and clear interface. This reduces the amount of work required.
