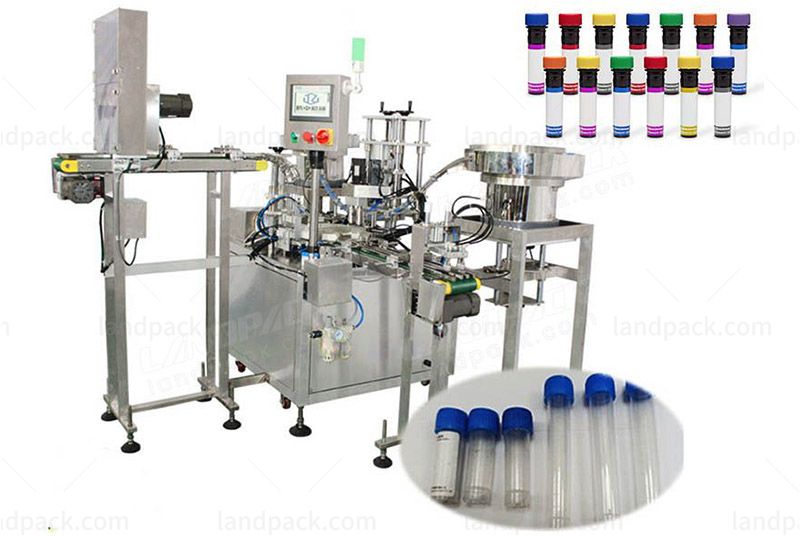

Automatic Filling and Capping Machine for Reagent Plastic Test Tube and Antiviral Liquid

  • Application
  • Description
  • Parameter
  • Video

Application:Widely used in pharmaceutical factories, such as: reagents, plastic test tubes, eye drops, e-liquid, essential oils, and other small bottled products.

Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Filling and Capping Machine for Reagent Plastic Test Tube and Antiviral Liquid etc  LD - LFT002


1.The equipment adopts a gas-electric integration and PLC system control, and is easy to operate. It is an ideal reagent filling equipment that fully meets the production specifications of the drug tube.

2.The equipment adopts high-precision peristaltic pump for quantitative filling, with high filling accuracy and beautiful effect.

3.The servo motor is used to grasp the cap and screw the cap, which can accurately grasp the 1.force of the cap screw to protect the cap and prevent the cap from being scratched and not screwed tightly.

4.It can be equipped with automatic labeling function, visual inspection function, automatic boxing and other functions.

5.The operation of the machine is equipped with safety guarantees, fault alarms and other settings. The automatic operation of functions from pipe entry, filling, cap sorting, capping, capping, labeling, and collection, does not require manual intervention.

6.The operation of the machine is equipped with safety guarantees, fault alarms and other settings. The automatic operation of functions from pipe entry, filling, cap sorting, capping, capping, labeling, and collection, does not require manual intervention.

Suitable for tube sizeaccording to the sample provided by the customer, it can be customized
How to organize the pipesmanually place the pipes on the pipe-organizing machine
Out of the tubeaccording to the shape of the tube, actual customization
Filling method2 heads peristaltic pump filling
Filling capacity3ml~8ml
Output
about 2400 bottles/hour

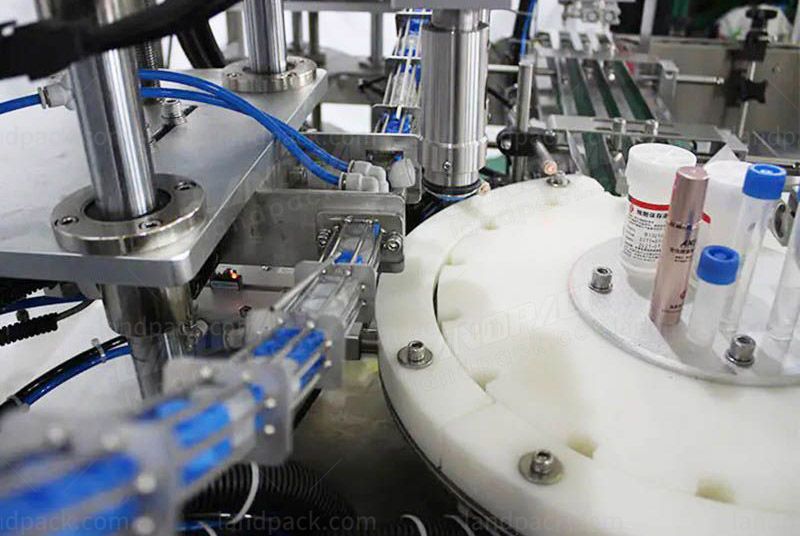

The way to arrange the capautomatic lid arrangement with vibration plate (double vibration plate)
Cap removal/cap removal methodautomatic cap removal, servo torque capping (double-head servo, torque capping)

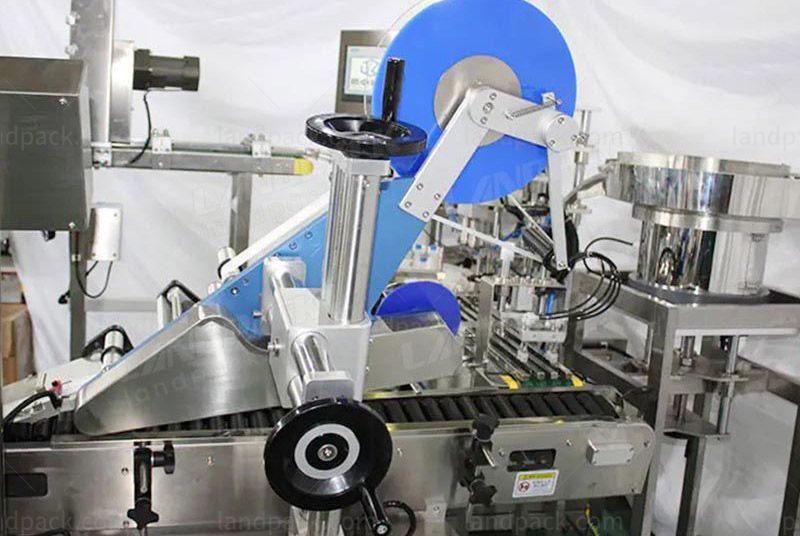

Labelingautomatic positioning and labeling
Pipe-out methodthe cylinder grabs the pipe and moves the pipe, and the pipe is discharged through the slope
Program controltouch screen
Air pressure0.6-0.8MPa
Powerabout 3KW/AC220V 50/60HZ

After receiving your inquiry,We will send you the quotation as soon as possible.
