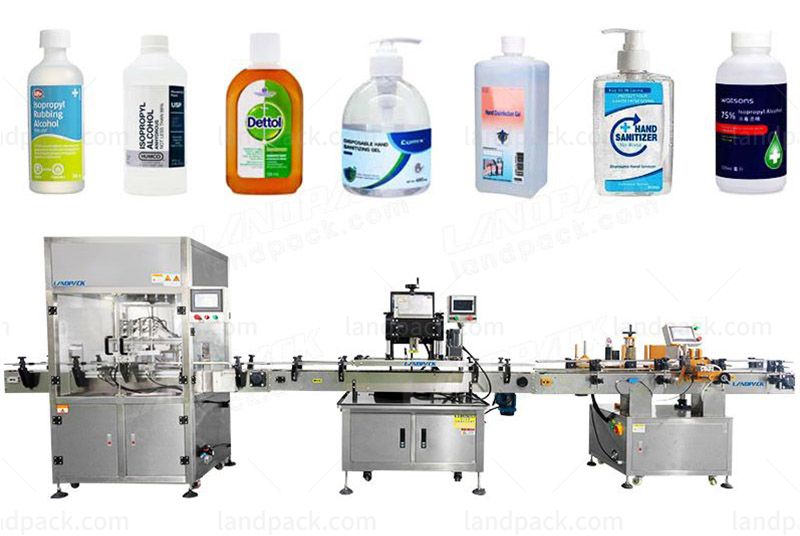

Liquid Bottle Filling Capping and Automatic Labeling Machine LDFA - 04

  • Application
  • Description
  • Parameter
  • Video

Application:Suitable for automatic filling, capping and labeling of various round, flat, square and other special-shaped bottles, cans, boxes and cans.Applying to food, medicine, pesticide, chemical and other industries. such as hand sanitizer, distilled spirits, lubricate oil, edible oil, liquid detergent.

Kindly Reminder:We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Liquid Bottle Filling Capping  and Automatic Labeling Machine

1.Stronger PLC software support, may realize the ideal filling operation.

2.The touching operation color screen, can display the production state, operation  procedures and filling ways, tableau objective, operation simple and maintenance convenient.

3.This China most popular products simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of filling head during filling production process.

4.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

5.This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.

6.Pivotal electrical part use world famous brand such as Mitsubishi, OMRON, SIEMENS.

7.Optional servo filling system.

8.The Automatic Liquid Bottle Filling Capping and Labeling Machine is a new generation of filling machine developed by our company based on foreign advanced technology.

9.It adopts PLC and servo quantitative, integrating electromechanical and pneumatic. The electrical and pneumatic components are selected from world-renowned brands and are controlled by PLC.

10.The design is novel, beautiful in appearance, stable and reliable in performance, high filling accuracy, strong adaptability, simple operation, Features such as easy maintenance.

11.Part of the devices can also be used for high-temperature filling at 80-95℃ after special treatment.

ModelLDFA-04
Product nameAutomatic Liquid Bottle Filling Capping and Labeling Machine
Production capacity1000-8000bottles/hour(customized)
Filling capacity50-5000ml
Bottle size20-1500mm(customized)
Qualified Stoppering≥99%
Qualified cap putting≥99%
Qualified capping≥99%
Air pressure0.6Mpa
Power1.2Kw
Machine weight600kg
Power110V220V/380V 50~60Hz(According to customer)
WarrantyTwo year free
CertificateISO9001, GMP, CE
Applied bottle rangeRound/flat/square bottles
Single machine noise≤70dB
Dimension2000*1000*1500mm

After receiving your inquiry,We will send you the quotation as soon as possible.
