Suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries such as box packaging of Disposable masкs, N 95 masкs, medical masкs, blisters, bottles, vials, pillow packs, toothpaste, etc.
Many of electrical appliances are made by international famous brand. For example:Japan OMRON PLC, SMC pneumatic element, Germany BECKER vacuum pump and Switzerland Robatech hot melt applicator.

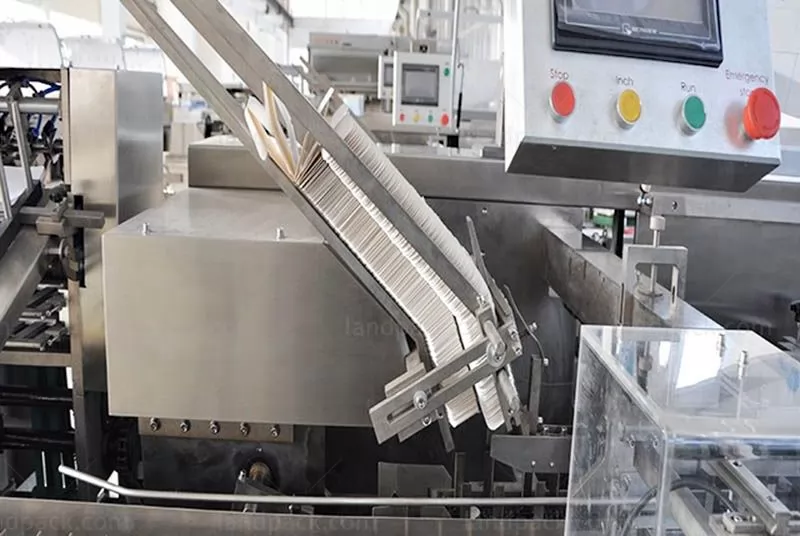

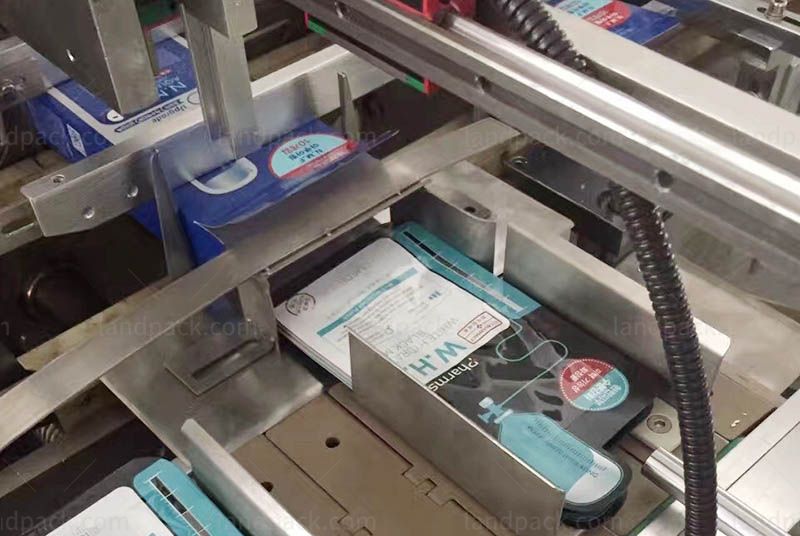

The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. For example ,The paper box will not be supplied without material; the glue will not be sprayed without the paper box. The machine will alarm when the paper box is not in position, and will stop when the material is not supplied and the machine can stop automatically if overload happen,etc.

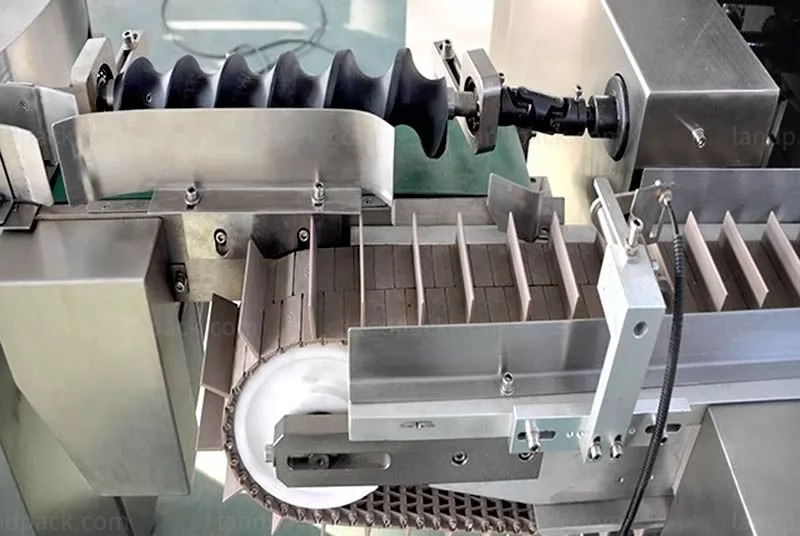

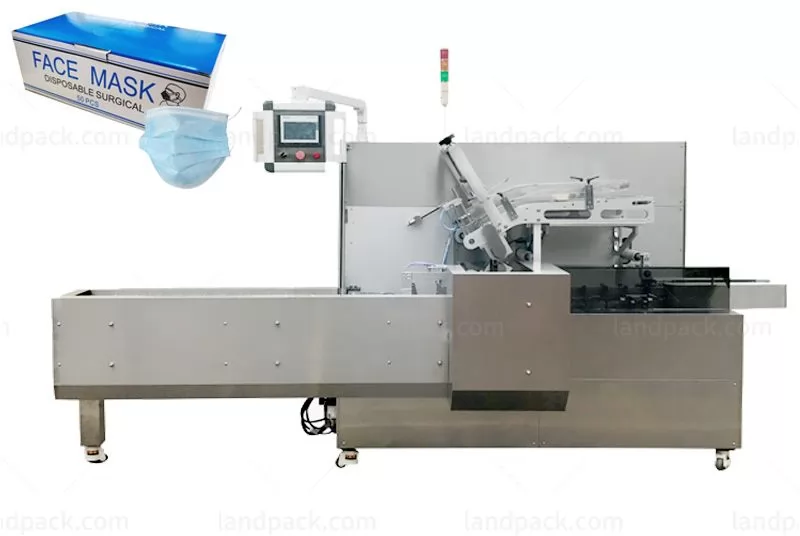

Simple structure in linear type ,easy in installation and maintation. Running in a high automatization and intellectualization,no pollution
It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
| Speed: | Min box size: | Max box size: |
| 60box/min | L:70mm*W:40mm-H:25mm | L:350mm*W:320mm*H:100mm |
| Available paper: | Air pressure: | Air consumption: |
| 300-350g/㎡ | 0.6-0.8MPa | 200-260L/min |
| Power supply: | Max power: | Overall dimension: |
| 220V/50HZ | About 1.2KW | 4000mmX1580mmX1850mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
