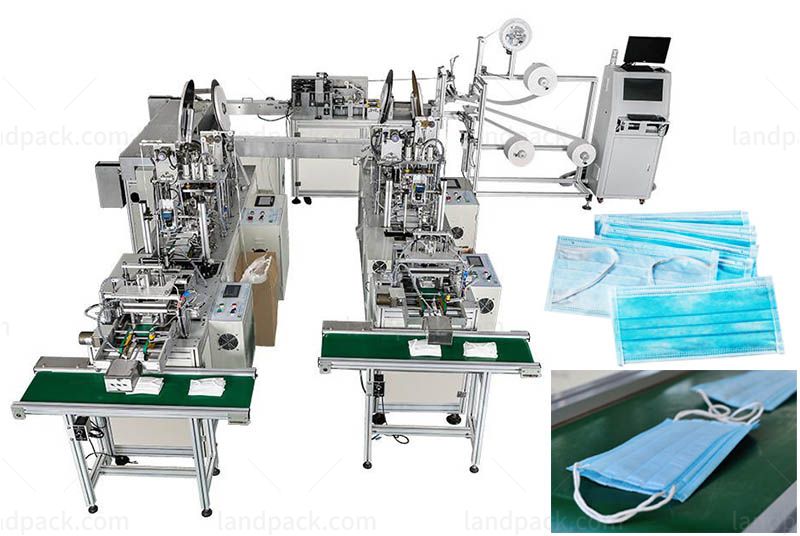

Automatic Surgical Masк Making Machine, Face Masк Producing Machine.

  • Application
  • Description
  • Parameter
  • Video

Application:

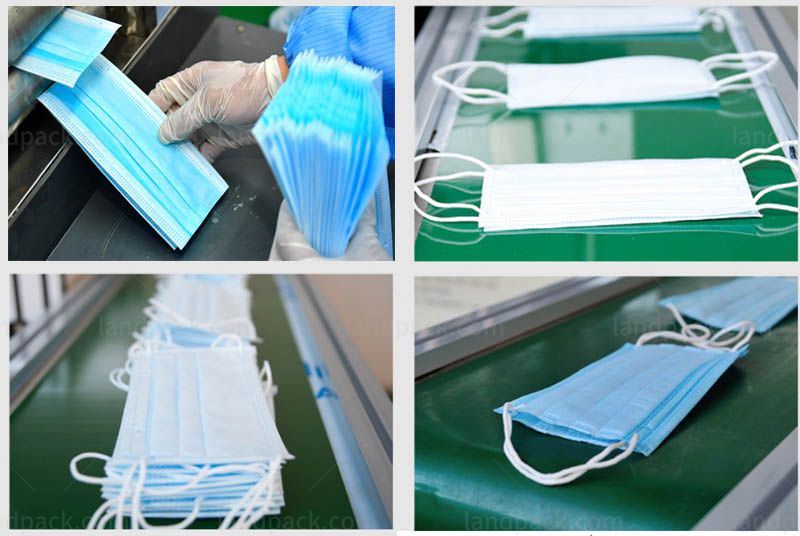

Production of disposable medical flat masкs laminated with three layers of fabric.

Exambers:    Mask Making Machine, Automatic Mask Producing And Packaging Machine,.

  1. The top layer, filter layer, and bottom layer of three rolls of fabric are automatically aligned and fed.The two sides are continuously rolled by the ultrasonic system.The nose clip is automatically cut & fed into the underlying fabric, and the first step of pressing and merging is cut into a single fabric at the same time;

  2. After the lamination is completed, the conveying line is sent into two automatic welding ear belt devices in a one-to-two manner;

  3. The earband is automatically welded through automatic cutting, clamping, handling and positioning, and ultrasonic welding.

  4. After the welding, the masк will automatically goes to the next process.

Main technical parameters of the equipment:

TypeThree-layer flat medical masк, surgical masк
Specifications175mmx95mm
Production speed80 ~ 100 pieces / min
Applicable materialspp non-woven composite fiber
Layers of cloth3 layers
Composite approachUltrasonic welding
Operation methodHMI control system
Demand pressure0.6Mpa
equipment power10KW
Application Power220V/50HZ
Equipment size5000mmx6000mm

After receiving your inquiry,We will send you the quotation as soon as possible.
