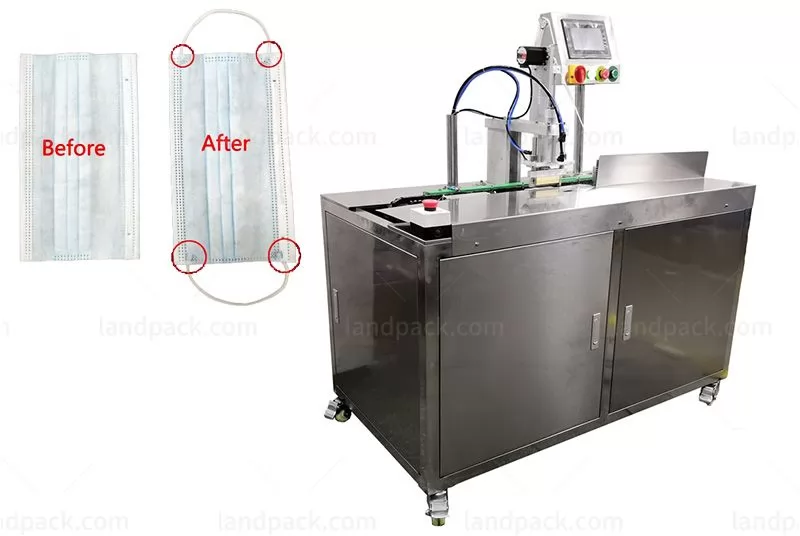

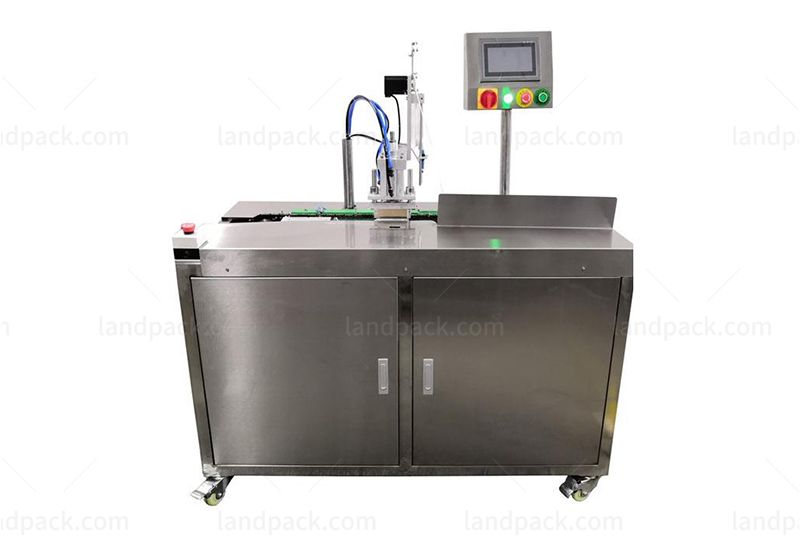

Ultrasonic Face Masк Ear Loop Welding Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

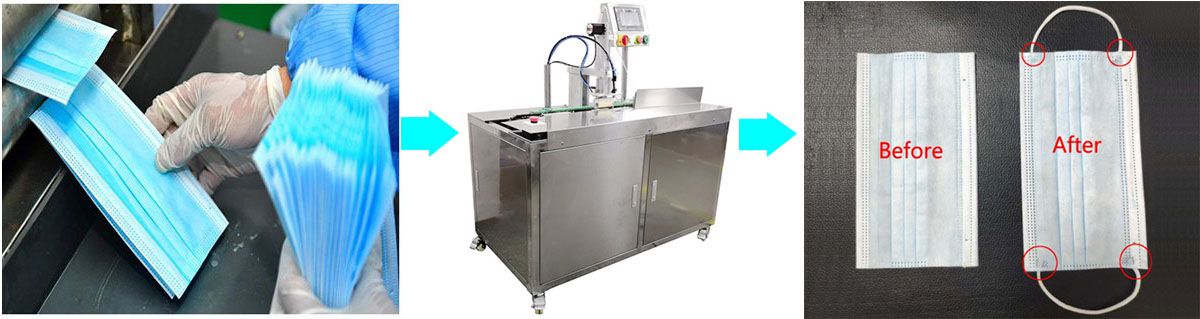

Masк outer ear-loop welding machine: weld the ear-loop (elastic band) to the sides of masк blank with ultrasonic technology, then finished the whole processing of outside masк blank, need only one operator to put the masк blank onto the jigs, the remaining will be finished by the machine automatically.

Exambers:    Ultrasonic Face Mask Ear Loop Welding Machine

  • Compact and smart design, small in size, will be space saving.

  • PLC control, with high stability and lower error rate.

  • Adopt high grade Aluminum alloy structure, carefully produced by CNC machining center, beautiful in appearance and rust-proof.

  • Taiwan ultrasonic system, high-quality photoelectric detection, stable performance, lower error rate.

  • Adopt mould, durable and wear proof, ear-loop weld strength is better and adjustable.

Model No:
LD-M20
Voltage
AC220V 50Hz
Ultrasonic power
2000W
Control system
PLC control system
Frequency
20Hz
Speed
15-20pcs/min
Machine Weight
170kgs
Machine size
1200*700*1450MM

After receiving your inquiry,We will send you the quotation as soon as possible.
