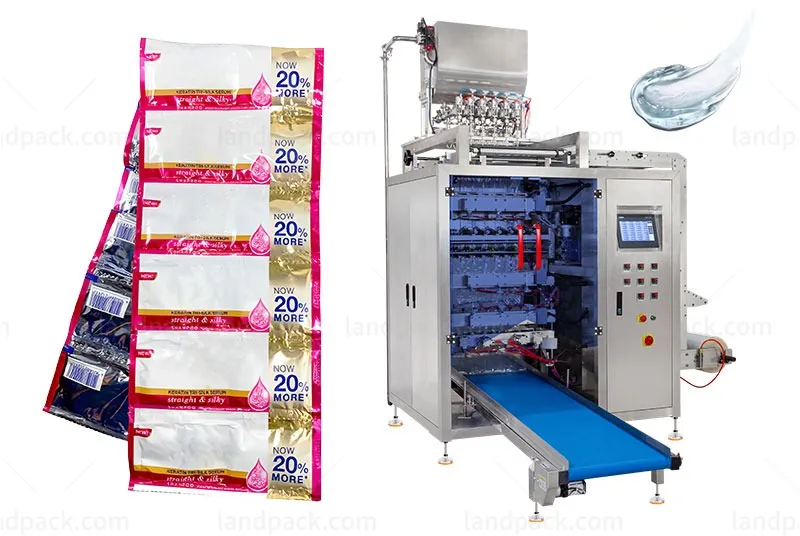

Application:
This shampoo sachet packing machine fills shampoo, hair conditioner, fabric softener, shower gel, liquid soap, lotion, and similar liquid products into small sachets. The machine can produce individual sachets or connected packs, then fold and stack them at the discharge section.

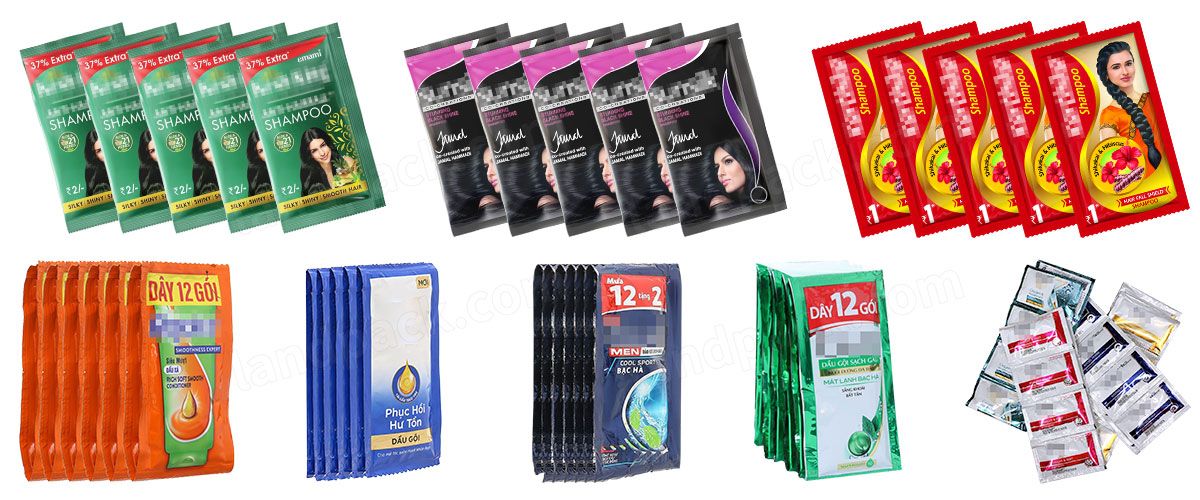

Package Type:
The machine forms flat 4 side seal sachets from roll film. It supports single sachets, vertically linked sachets, and connected strips with an adjustable number of packs. Suitable film materials include PET/PE, PET/AL/PE, NY/PE, and other heat-sealable laminated films.

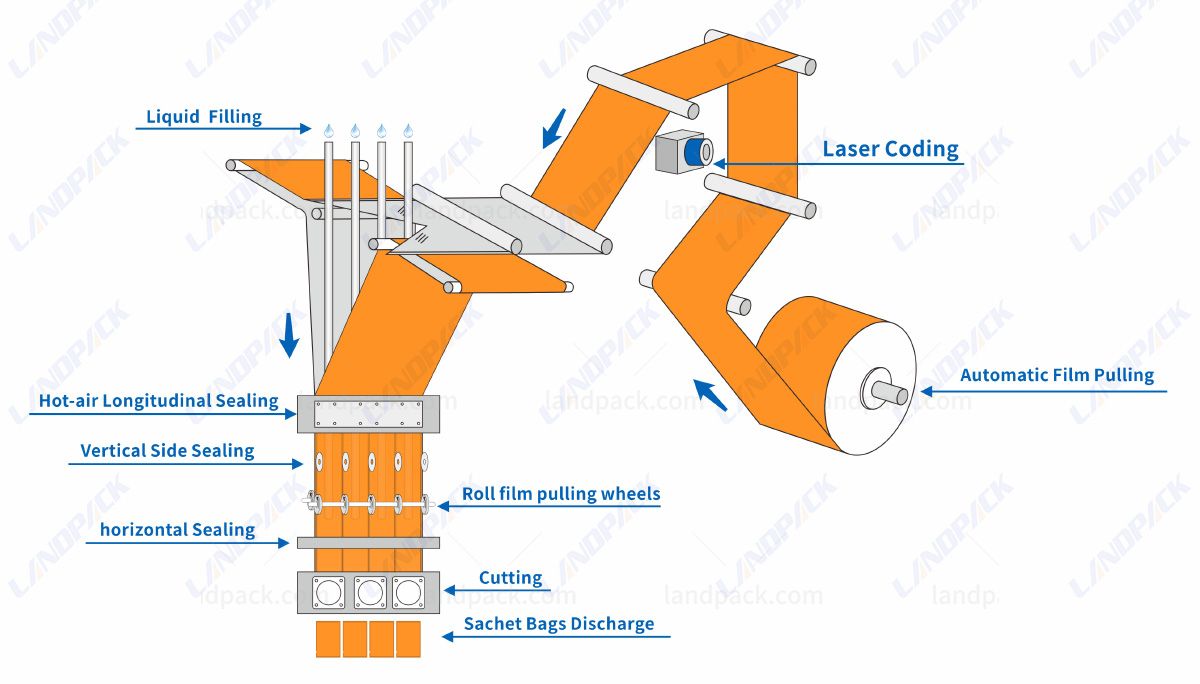

Workflow:
1. Touchscreen Setting, 2. Roll Film Feeding, 3. Servo Film Pulling, 4. Piston Pump Metering, 5. Liquid Filling, 6. Vertical Side Sealing, 7. Horizontal Sealing, 8. Steel Date Stamping, 9. Linked-Sachet Cutting, 10. Automatic Folding and Stacking, 11. Finished Pack Output

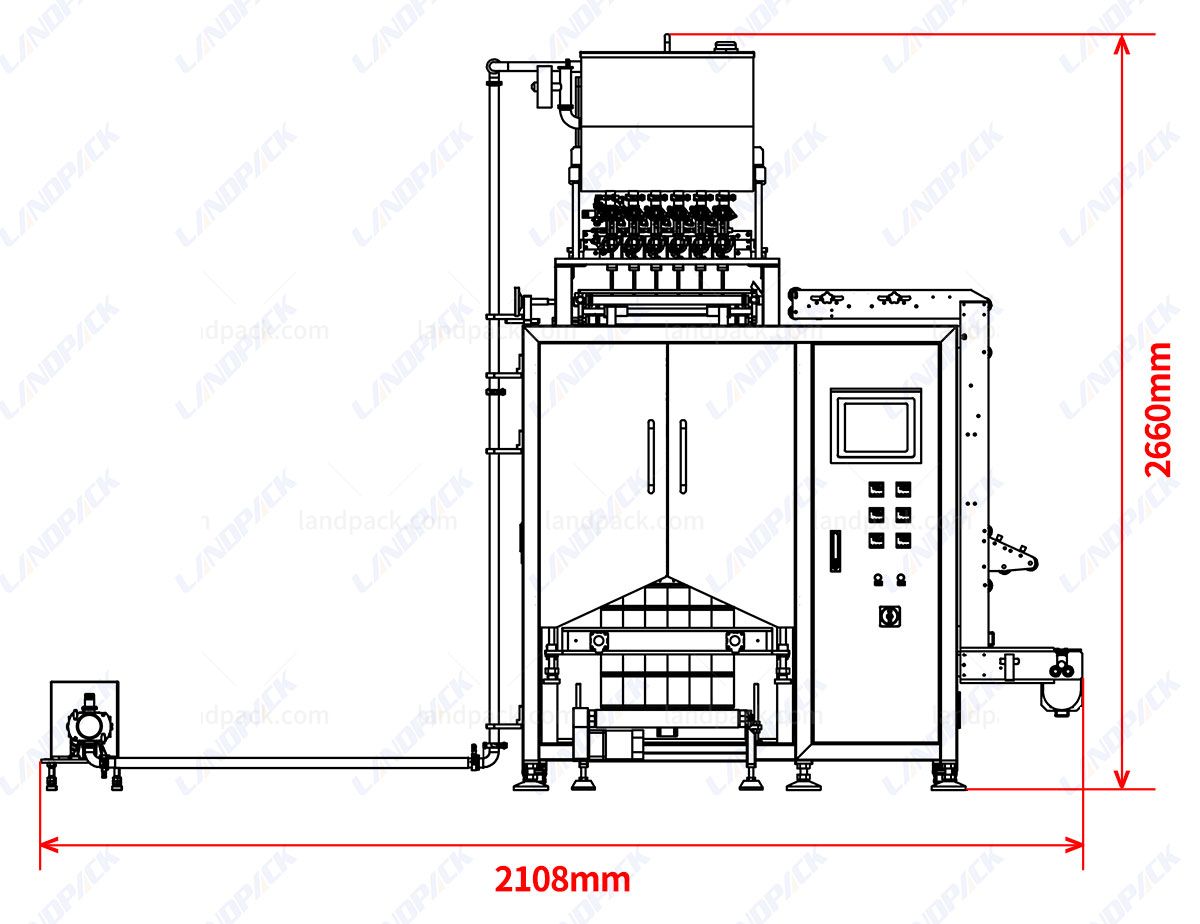

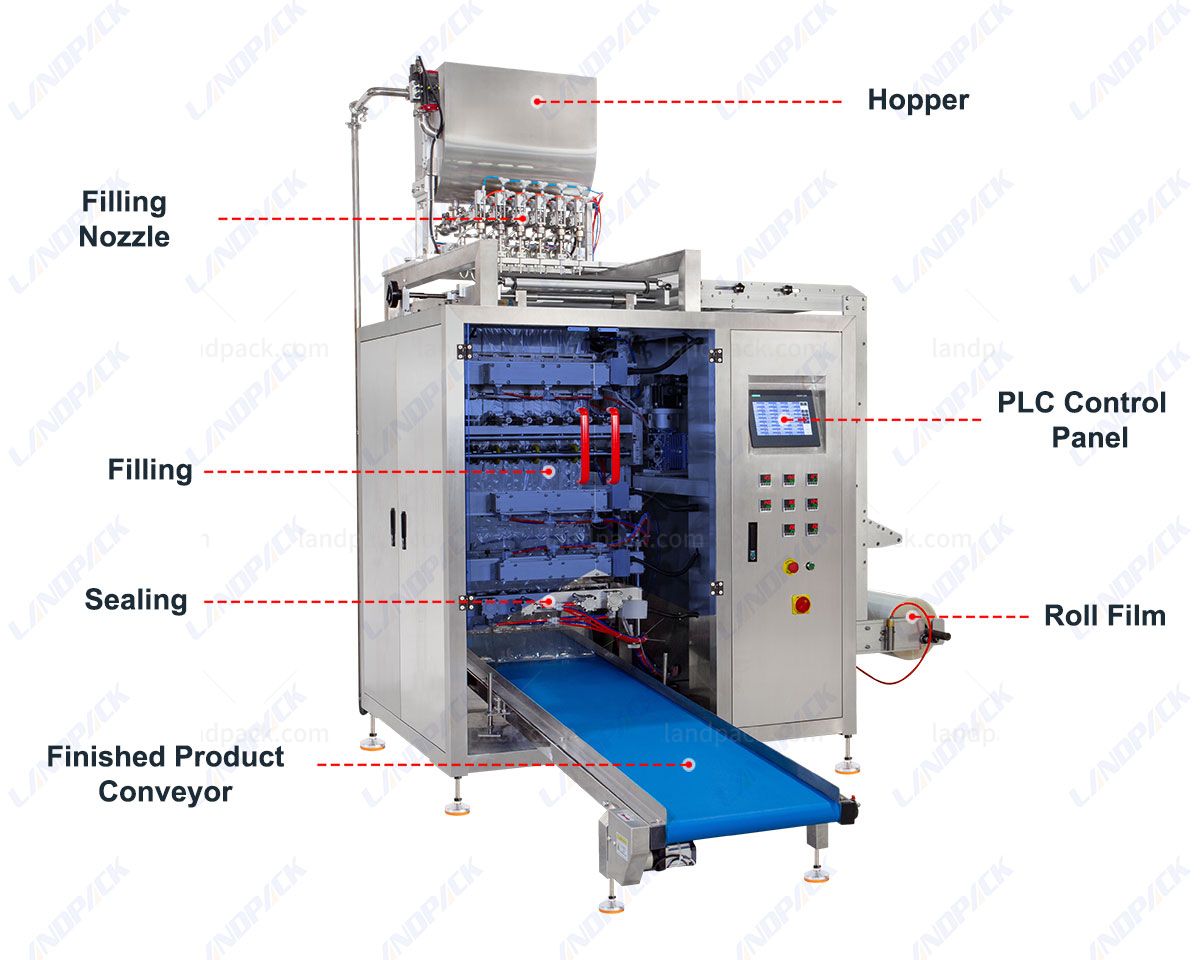

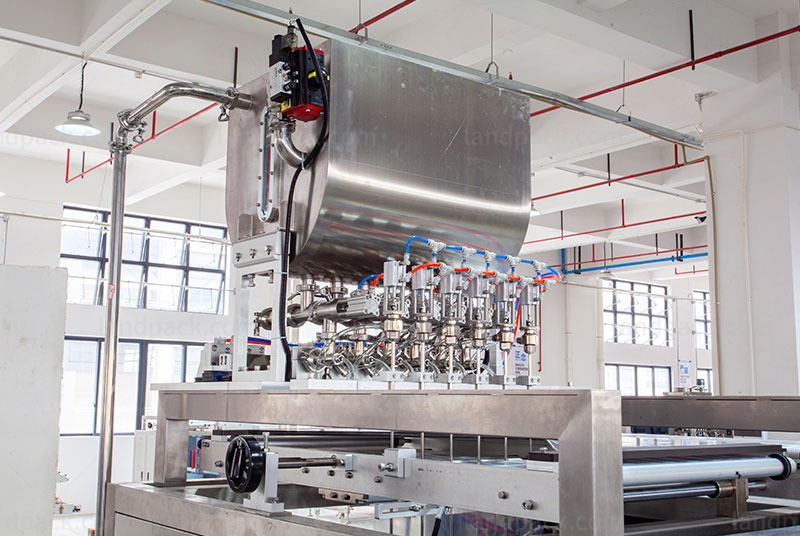

Machine Structures:
Features:
1. Full SS304 machine frame resists contact with shampoo and household liquids
2. Separate piston pump for each lane controls the filling volume
3. Servo drive controls film pulling and sachet length
4. Touchscreen stores filling, sealing, and linked-pack settings

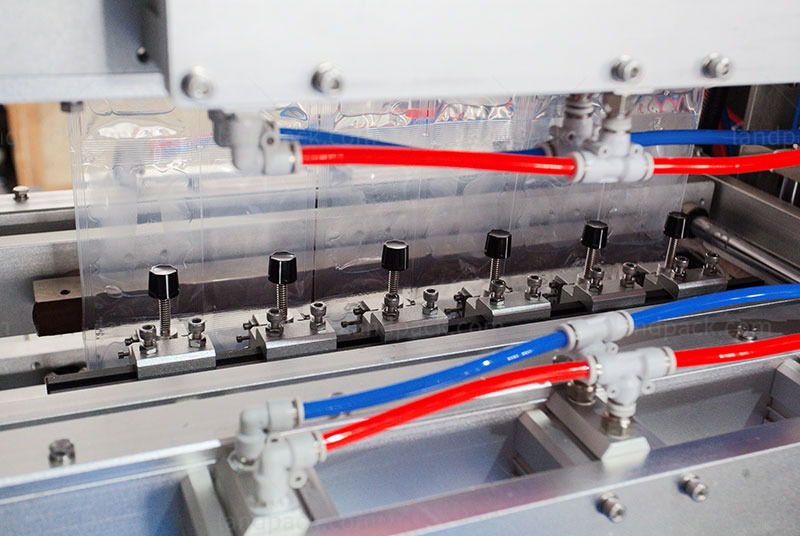

5. Four-side sealing closes every edge of each sachet
6. Adjustable linked-pack control sets the number of connected sachets
7. Automatic outlet conveyor folds and stacks finished sachet strips
8. Steel stamping unit adds date or batch details without ink cartridges
9. Independent sealing controls match different laminated films
10. Cutting unit keeps sachet corners and edges aligned
11. The pouch sachet filling sealing machine for shampoo handles individual packs and connected sachet strips
| Model | LDFS-480L | LDFS-720L | LDFS-960L |
| Track Number | 4~6 Tracks | 4~10 Tracks | 4~12 Tracks |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45-120mm; W:35-60mm | L:45-120mm; W:35-90mm | L:45-120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1 mm | Max.720mm; 0.07-0.1 mm | Max.960mm; 0.07- 0.1 mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
