Application:

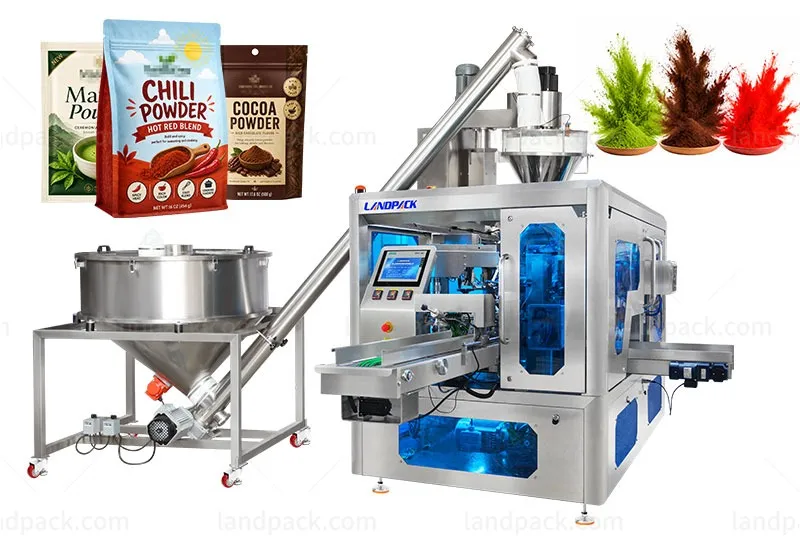

The Zipper Pouch Packing Machine is a fully automatic premade pouch packaging solution specially designed for powder products such as milk powder, coffee powder, protein powder, cocoa powder, seasoning powder, flour, nutritional supplements, collagen powder, probiotics, meal replacement powder, and dietary supplement products.
Package Type:
The Zipper Pouch Packing Machine is suitable for stand-up pouch, zipper pouches, Doypack bags, flat pouches, aluminum foil bags, kraft paper pouches, side gusset bags and customized premade pouch types.
Workflow:
Powder Feeding → Pouch Feeding → Pouch Opening → Zipper Opening → Powder Filling → Bag Shaping → Heat Sealing → Finished Product Output

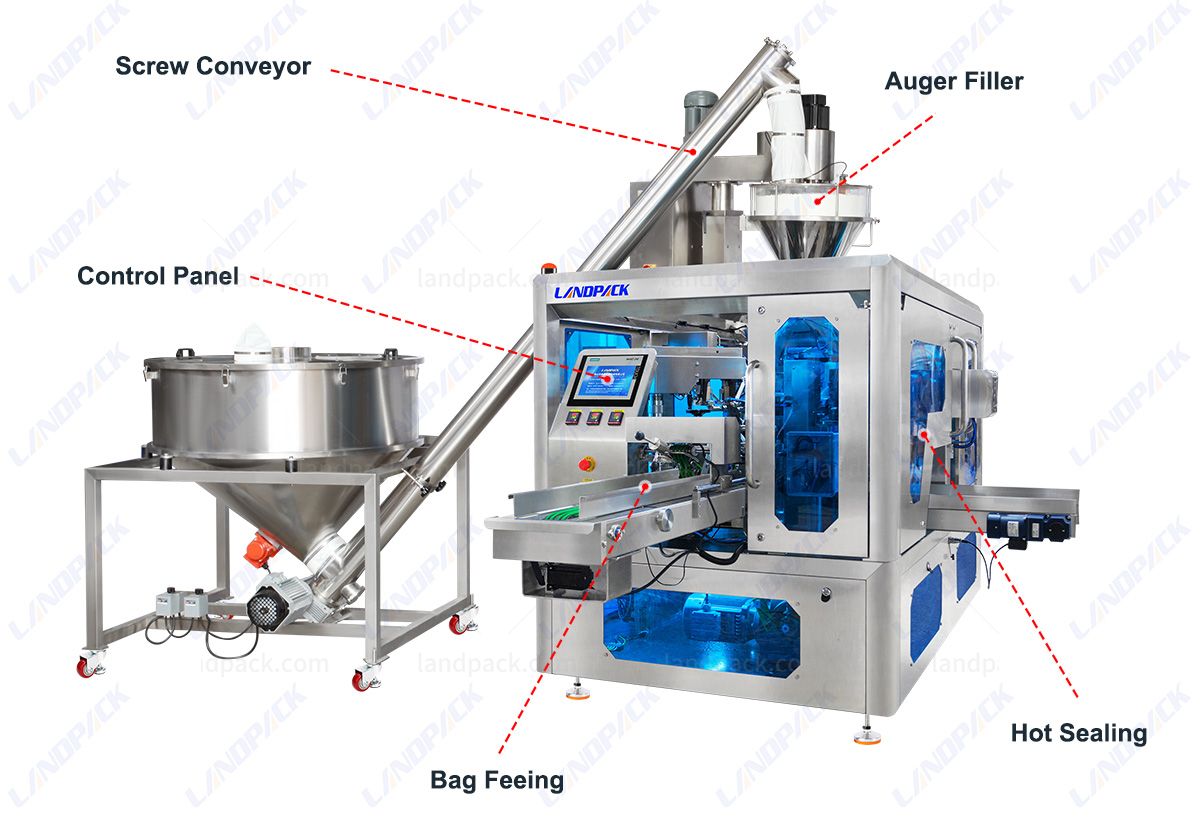

Machine Key Components:
Features:
1. Customized premium machine cover design delivers a modern appearance and enhanced equipment protection.
2. Integrated dust collection system reduces airborne powder and improves workshop cleanliness.
3. Brush cleaning device automatically removes powder residue from pouch openings for better sealing quality.
4. Servo-driven auger filling system ensures accurate powder dosing and stable filling performance.
5. Fully enclosed filling structure minimizes powder leakage and reduces material waste.
6. SUS304 stainless steel contact parts meet food-grade and pharmaceutical hygiene requirements.
7. Lightweight hollow-shaft screw conveyor design improves feeding efficiency and simplifies maintenance.
8. Vacuum dust extraction improves packaging accuracy, extends equipment lifespan and lowers maintenance costs.
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||
| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
