Retort pouches are widely used for ready-to-eat meals, soup products, sauces, cooked food and other shelf-stable food products. Compared with conventional containers, premade retort pouches provide a compact packaging format that is suitable for filling, sealing, sterilization, storage and retail display.
However, retort pouch packaging requires more than simply loading products into a pouch. The packing system must open premade pouches reliably, control the filling process, reduce contamination around the pouch opening and complete stable sealing before the packaged products enter the sterilization process.
For food manufacturers handling ready meals, soups, pasta sauces, meat products or solid-liquid mixtures, an automatic 8-station premade pouch packing machine can provide a practical solution for continuous production.
Retort pouch packing machines can be used for a wide range of food products. The filling configuration should be selected according to product viscosity, particle size, liquid content and required filling weight.
Rice dishes, pasta meals, curry rice, cooked vegetables, prepared food and meal kits.
Cream soup, chicken soup, vegetable soup, mushroom soup, corn soup and broth-based products.
Pasta sauce, tomato sauce, curry sauce, gravy, cooking sauce and seasoning sauce.
Cooked meat, braised meat, fish products, seafood products and meat products with sauce.
Vegetables with sauce, beans with broth, meat with gravy, pasta with sauce and prepared dishes containing both solid ingredients and liquid.
Retort pouch products are often filled before high-temperature sterilization. This means the packaging process must maintain stable filling and sealing performance.
Several factors should be considered:
The pouch must be picked up and opened reliably before filling.
The filling system should match the product type and reduce product waste.
The pouch opening should remain clean before sealing.
The sealing temperature and pressure should be adjusted according to the pouch material.
Solid-liquid mixtures may require separate filling systems.
The finished pouch should remain sealed during the following sterilization and handling processes.

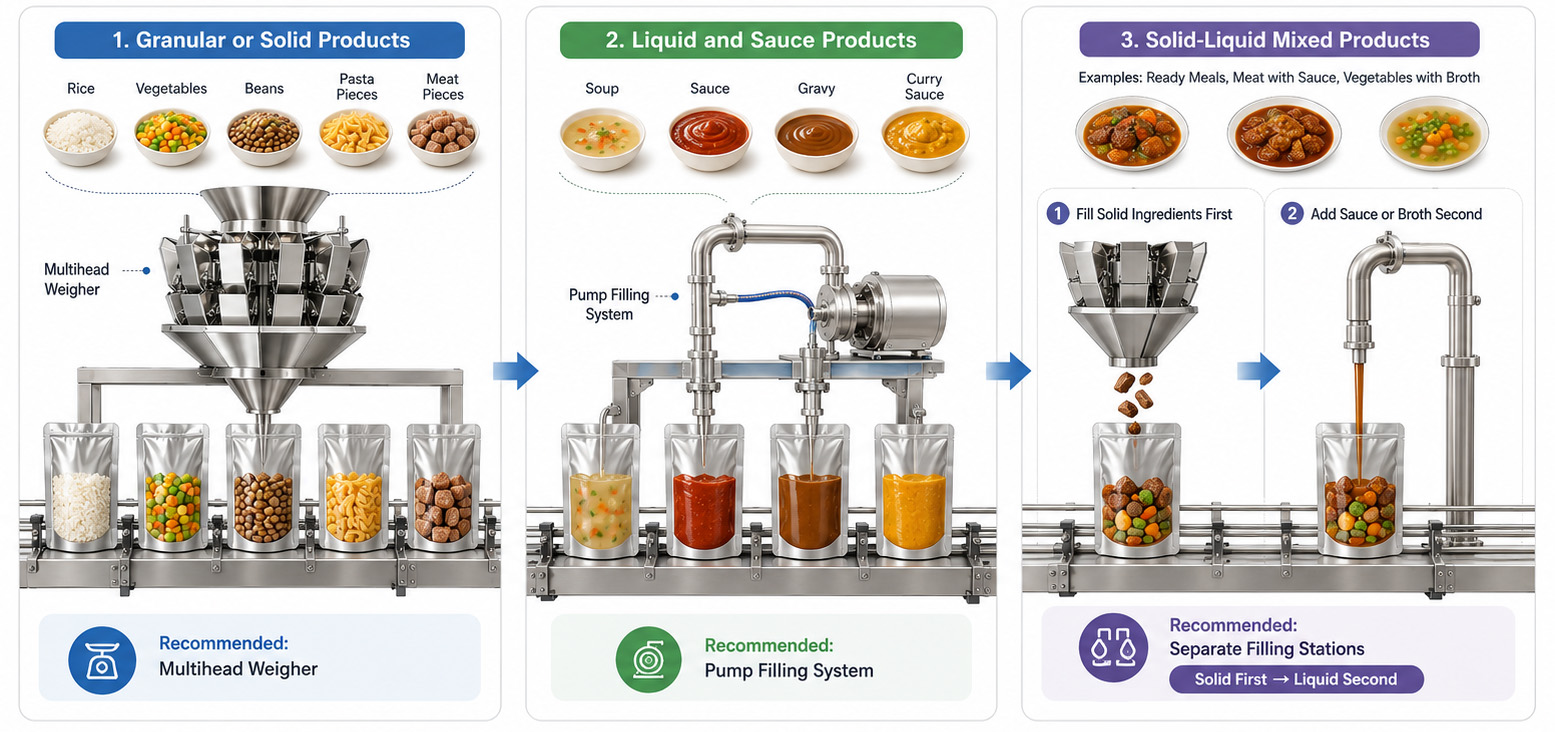

Different food products require different filling methods.

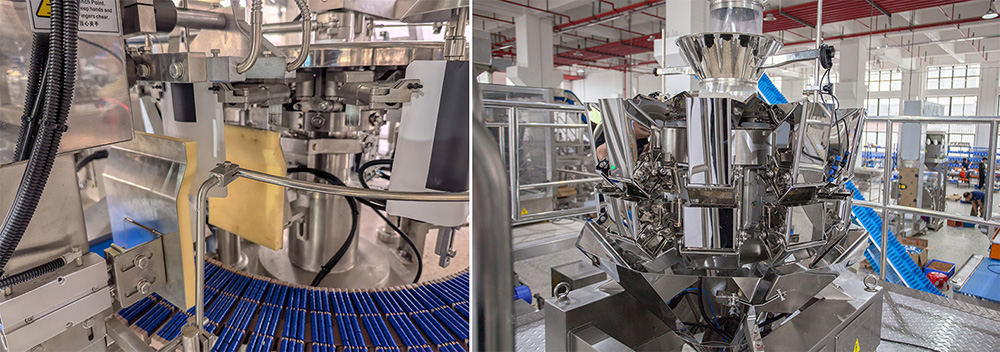

A multihead weigher can be used for rice, vegetables, beans, pasta pieces, meat pieces and other solid food products.

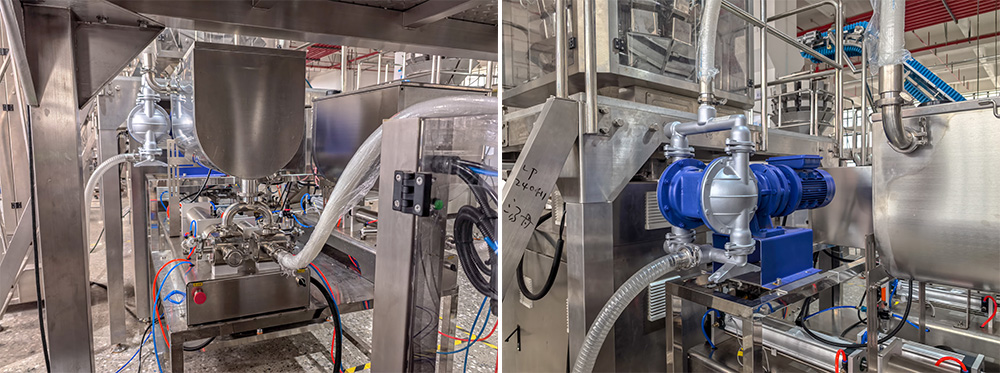

A pump filling system can be used for soup, sauce, gravy, curry sauce and other liquid or semi-liquid products.
For products containing both solids and liquid, the machine can be configured with separate filling stations. Solid ingredients can be dosed first, followed by soup, sauce or gravy filling.
This configuration is suitable for ready meals, meat products with sauce, cooked vegetables with broth and other mixed food products.

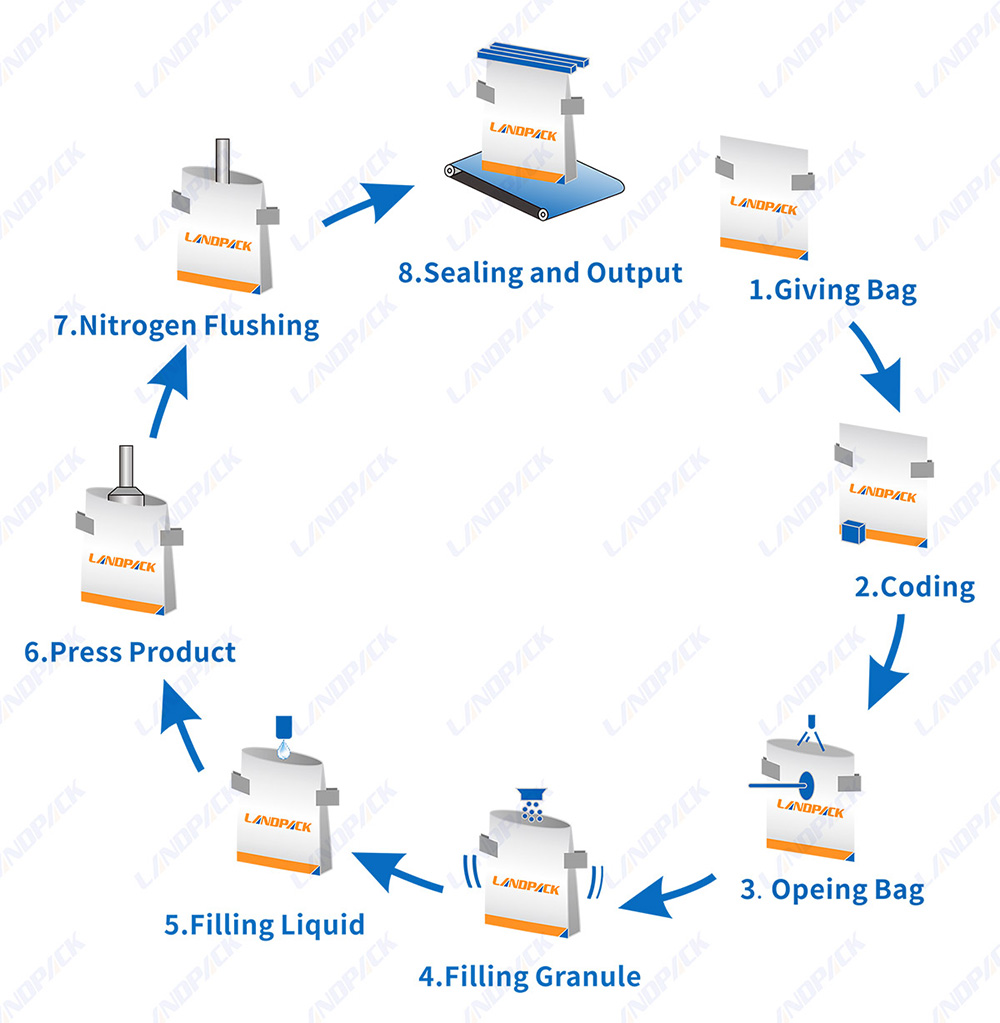

The automatic packing process is completed through eight working stations:
Pouch Feeding.
Pouch Picking.
Date Coding.
Pouch Opening.
Product Filling.
Optional Second Filling.
Pouch Sealing.
Finished Pouch Output.
The machine automatically completes pouch handling, opening, filling, sealing and discharge. Different filling devices can be connected according to the product characteristics and production requirements.

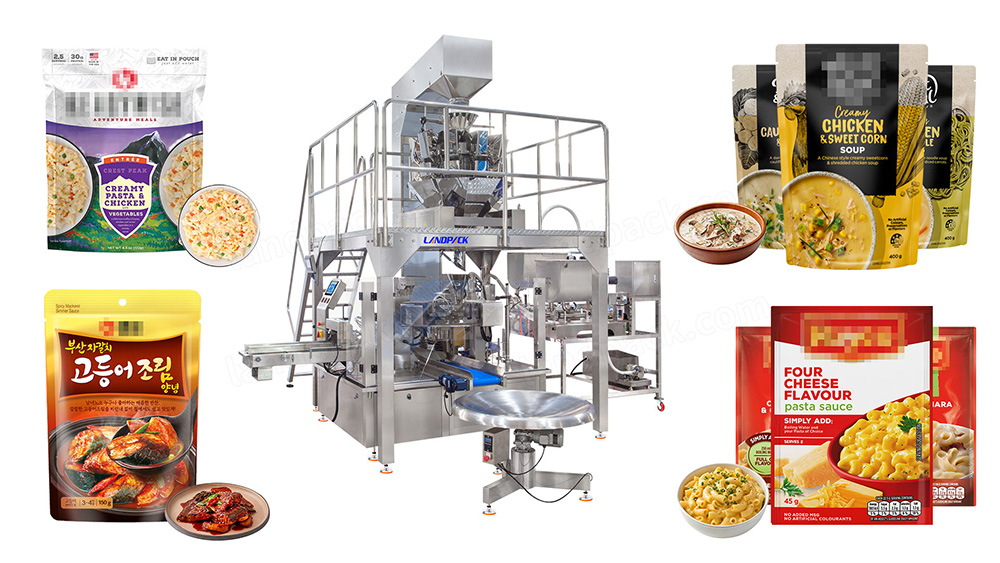

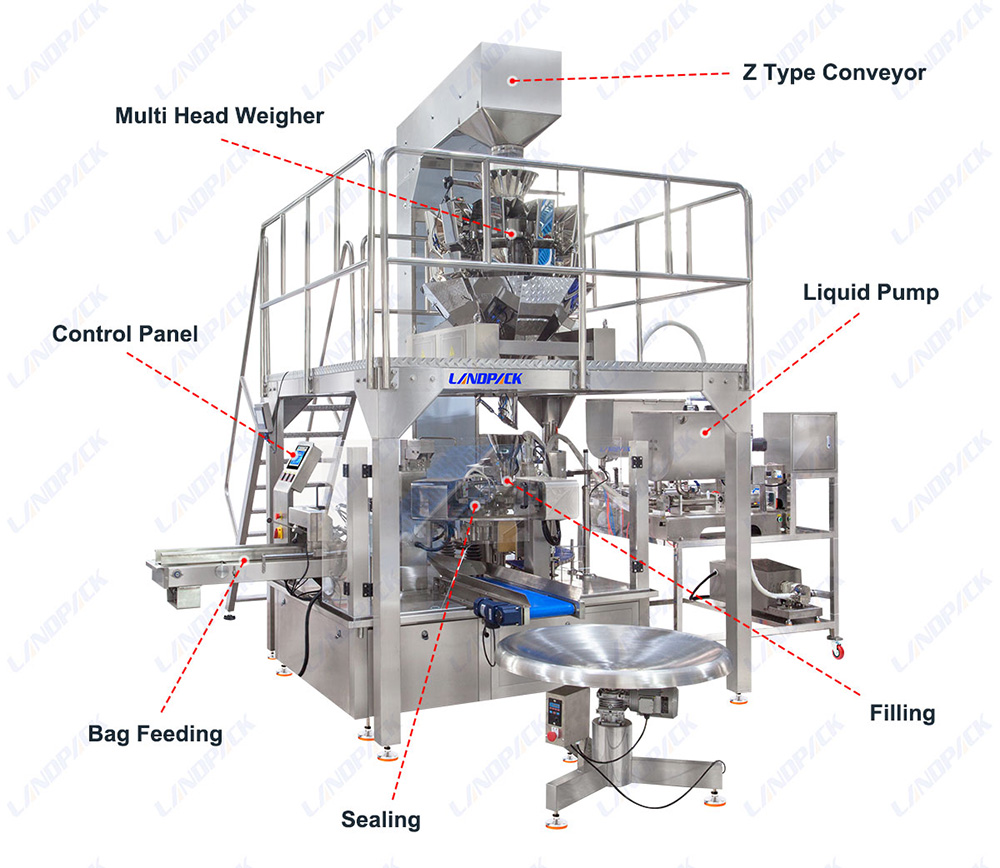

For ready meals and solid-liquid food products, the system can be connected with a multihead weigher, elevator, working platform and liquid filling device. The machine completes pouch feeding, opening, product filling, sealing and finished pouch discharge in one continuous process.
The modular configuration allows food manufacturers to select the required filling equipment according to product type, filling weight and production capacity.

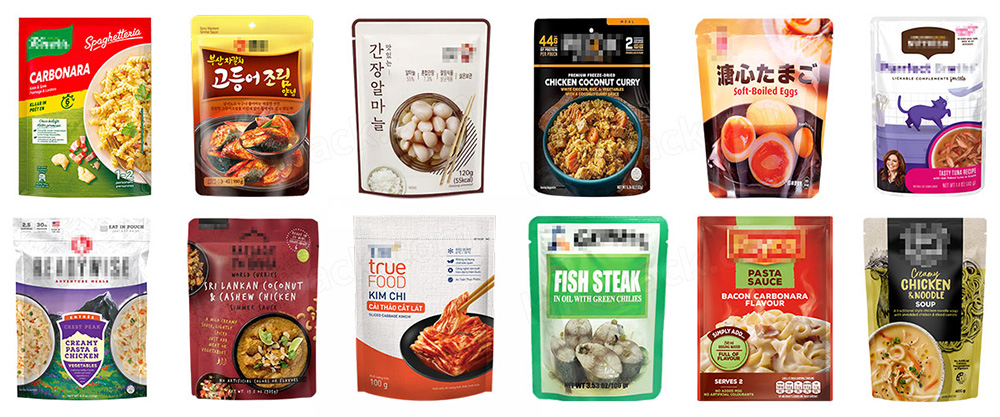

The machine can work with premade retort pouches, stand-up pouches, flat pouches and other heat-sealable premade pouch formats.
The final pouch material and sealing settings should be confirmed according to the product characteristics and sterilization process.
Multihead weigher for solid food products.
Pump filling system for soup and sauce products.
Separate liquid filling station for solid-liquid mixtures.
Elevator for automatic product feeding.
Working platform for weighing equipment.
Date coding machine.
Finished pouch conveyor.
Checkweigher.
Metal detector.
Pouch cleaning or sealing-area control device when required.
Yes. The machine can be configured with separate filling stations. Solid ingredients can be filled first, followed by sauce, soup or gravy.
Yes. The machine is designed for premade pouches. The pouch size, pouch material and sealing conditions should be confirmed before production.
Please provide the product type, product photos, filling weight, pouch dimensions, pouch material, target speed and whether the product contains liquid or solid ingredients.
Yes, but the filling system should be selected according to the product size, shape and flowability. A sample test may be required for mixed or irregular products.
Yes. A checkweigher, metal detector and finished pouch conveyor can be added according to the production requirements.
Choosing a retort pouch packing machine requires careful consideration of the product type, pouch format, filling method and sealing requirements. For ready meals, soup products, sauces and solid-liquid food products, an 8-station premade pouch packing machine can be configured with different filling systems to support continuous automatic production.
To recommend a suitable configuration, provide your product photos, pouch dimensions, filling weight and expected packing speed.
