How to install a film roll on a vertical packaging machine

     Landpack specailzes in Vertical packaging machine,  flow packging machine and bottling machine, Other than these we provide also with customizable solution according to what the customers actually need.

     Otherwise we’d like to teach the customers with some Knowledges of how to use the machines in a proper way, besides that we’d like to also careful maintenance that makes the machines to be running last longer.

     There is always a comfusing question from the customers: How do we install a roll of film on a packging machine!

     Especially for those customers who just have the first machine on their workshop. It takes a lot of time to figure out for the film installation even with a video teaching them how to do that.

     This article is to teach people on a simple process and simple presentation.

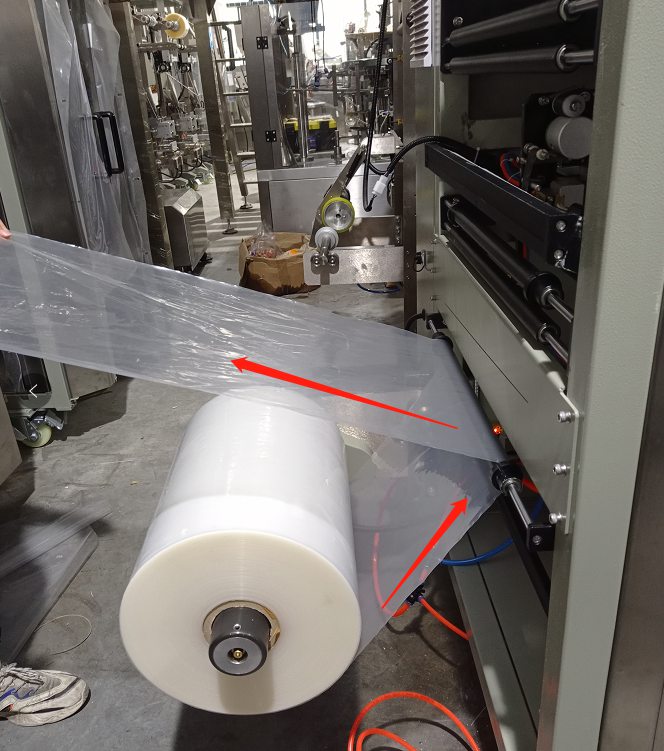

     Firstly ,we have to make the right direction for the film roll.

This is the step 1.

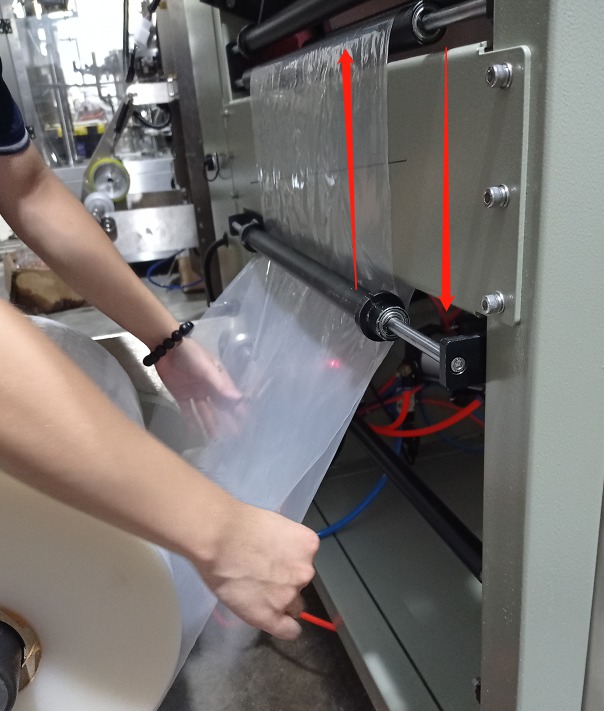

Step 2, wrap over the frame

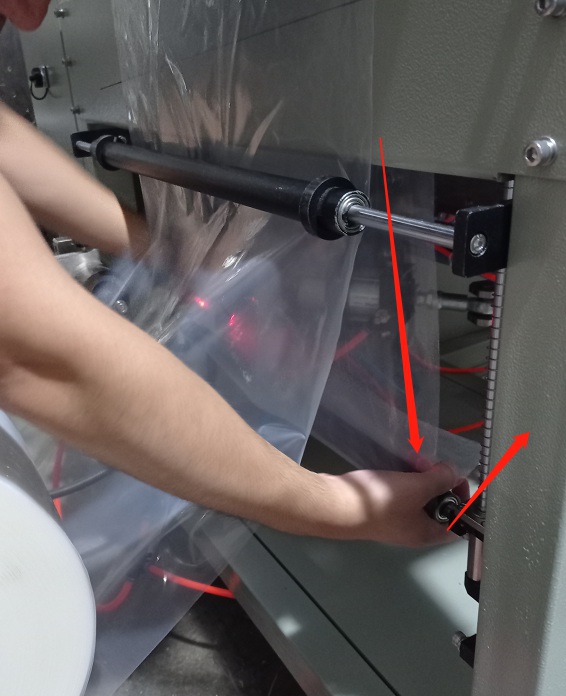

Step3 , over the lower roller

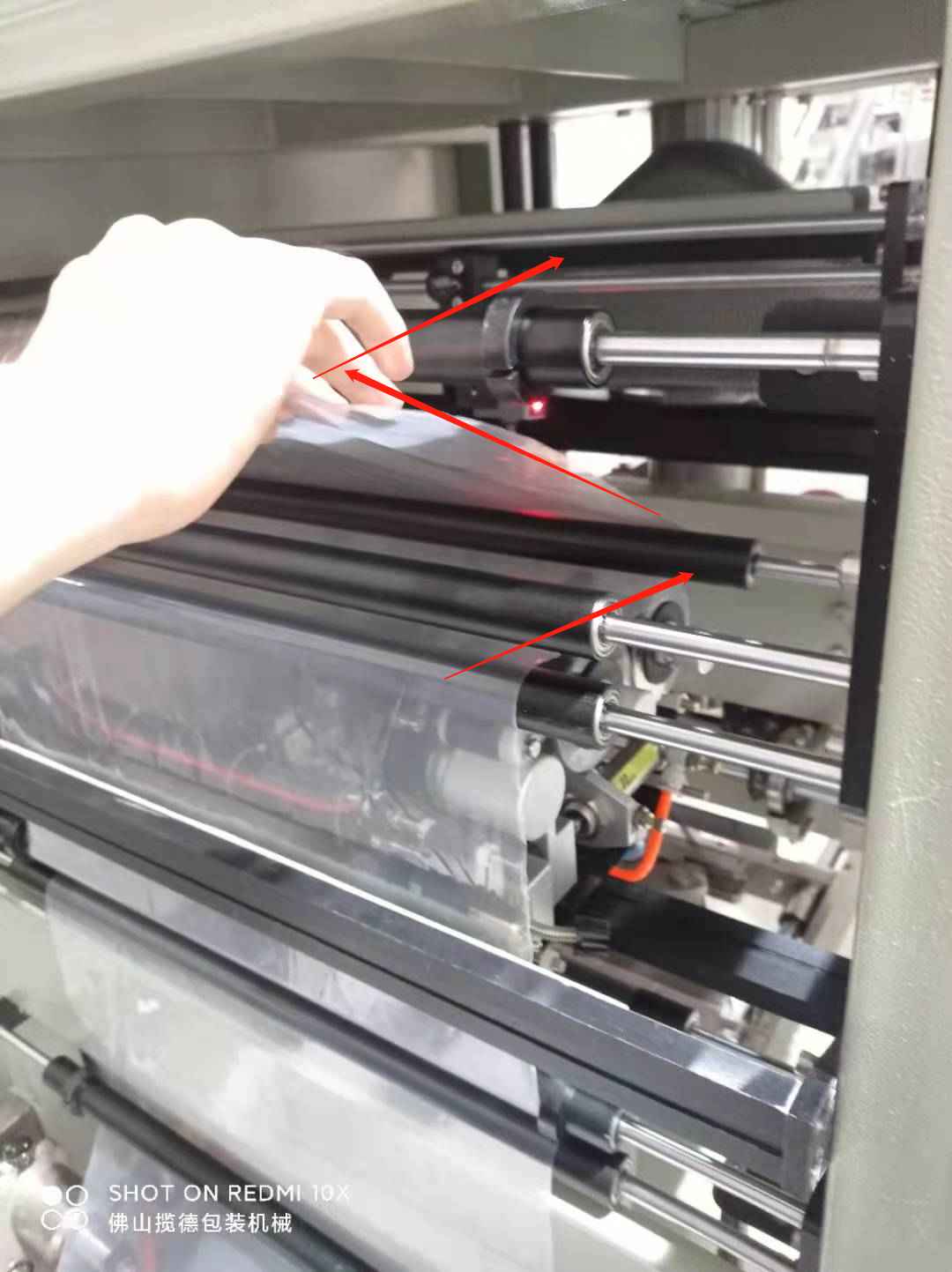

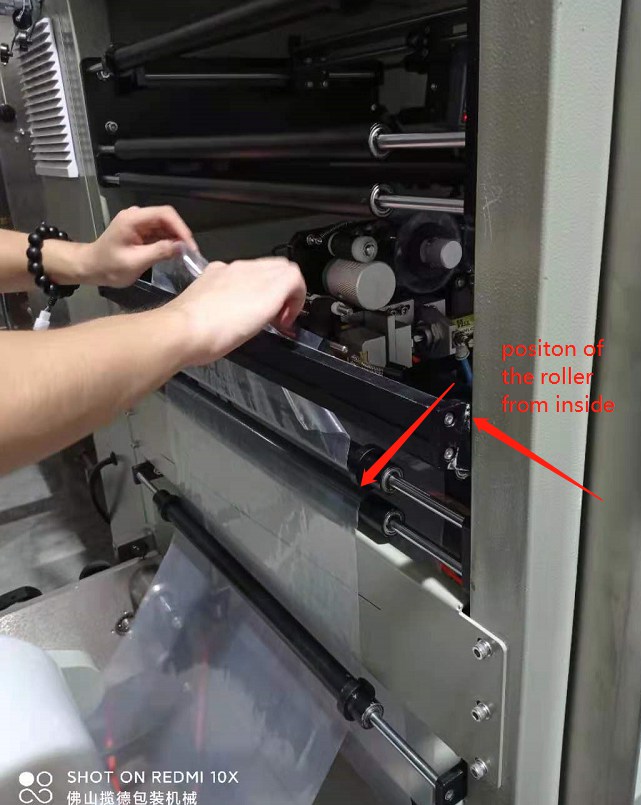

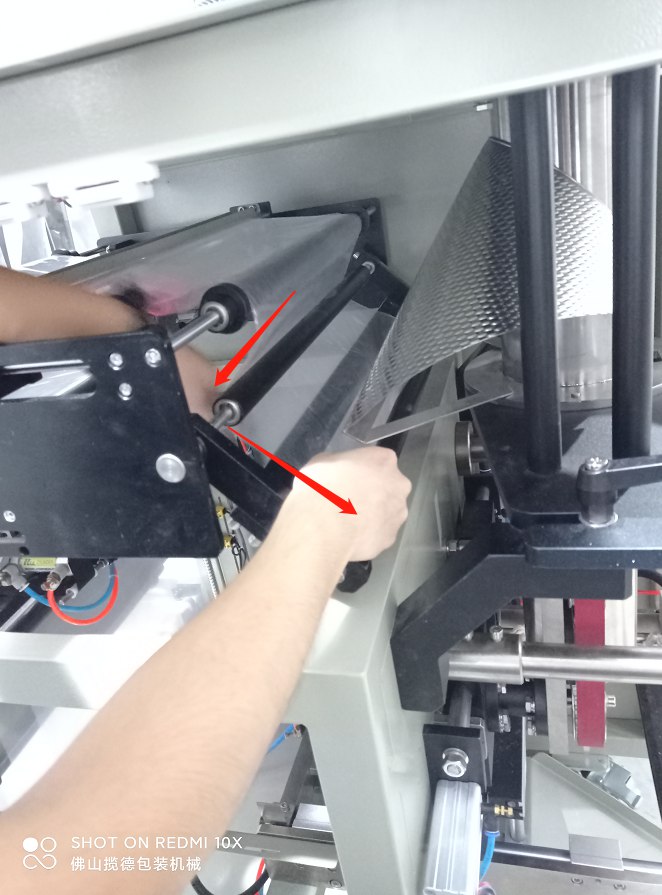

Step 4 , roll it over the roller from the inside

Step 5 pull it over roller from the inside

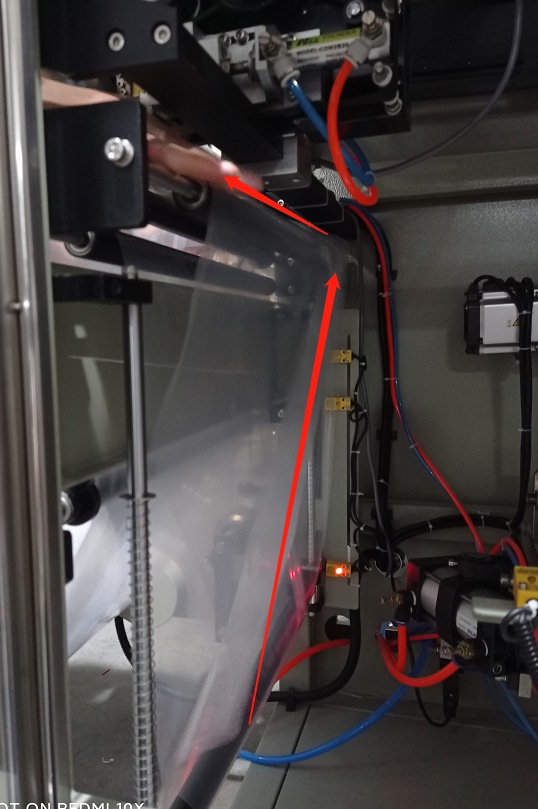

Step 6

Step 7

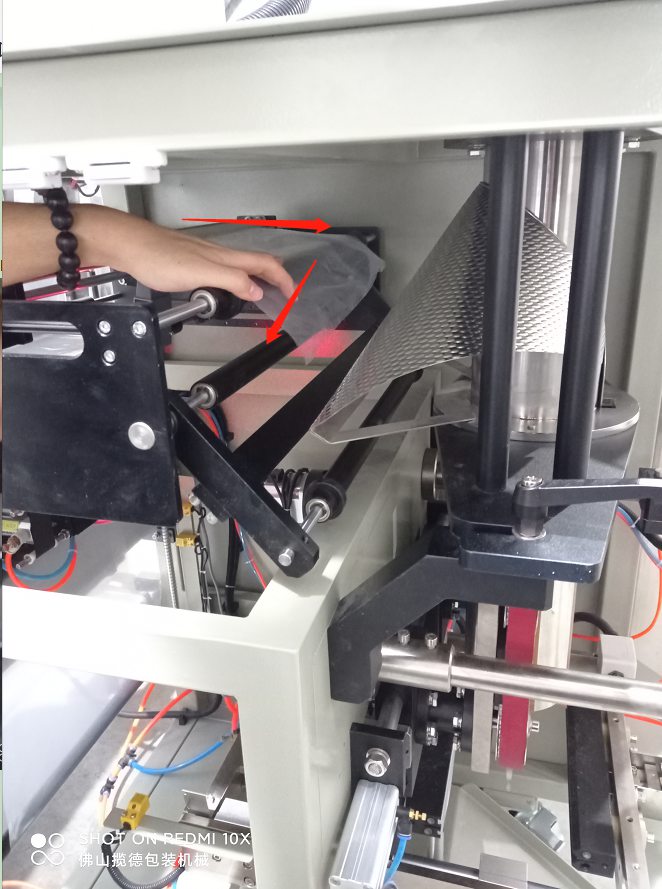

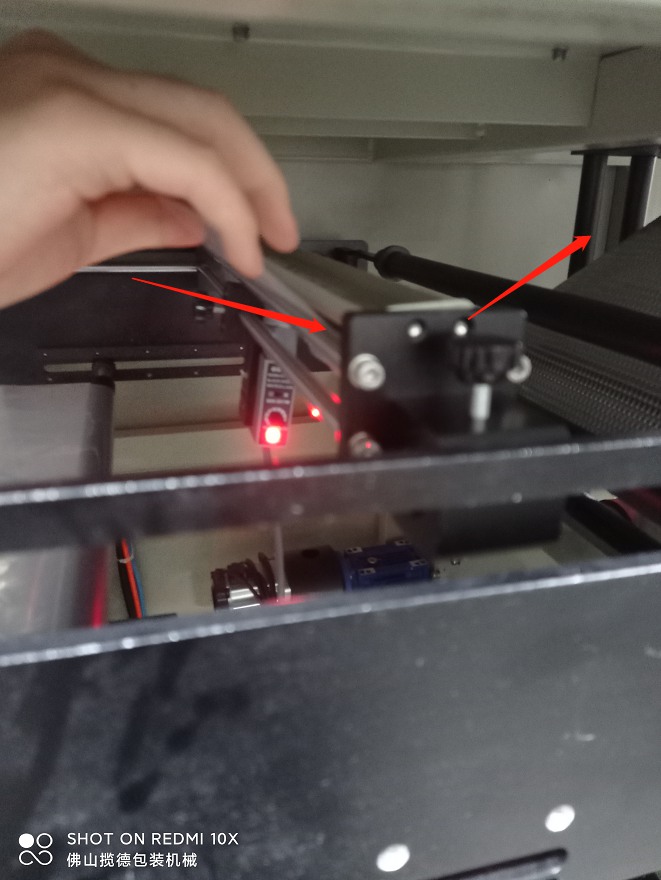

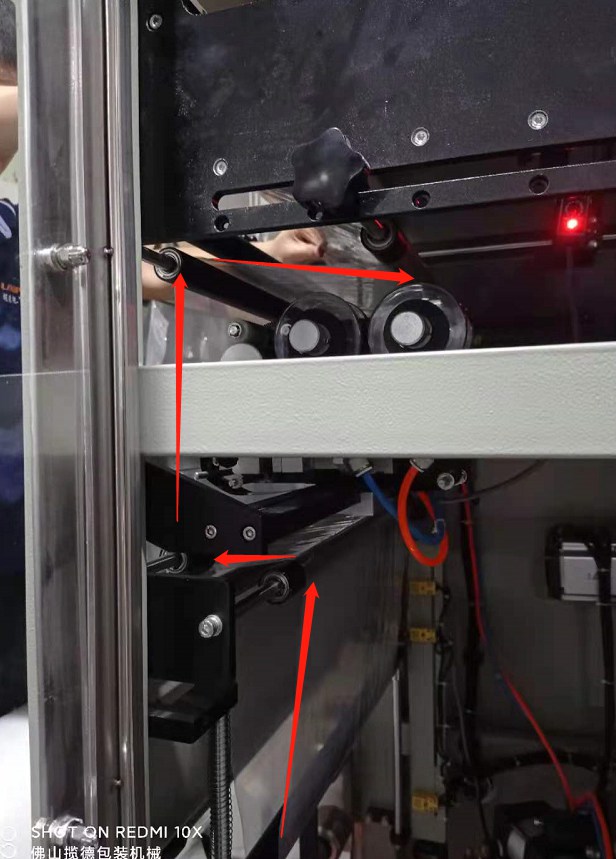

Step8  through the gap between two cylinders.

Step 9

Step 10

Step 11

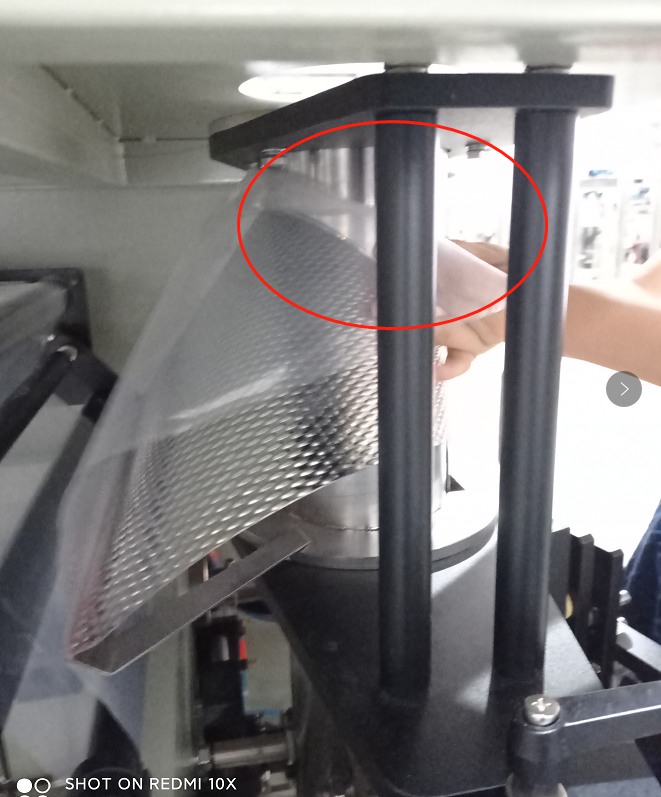

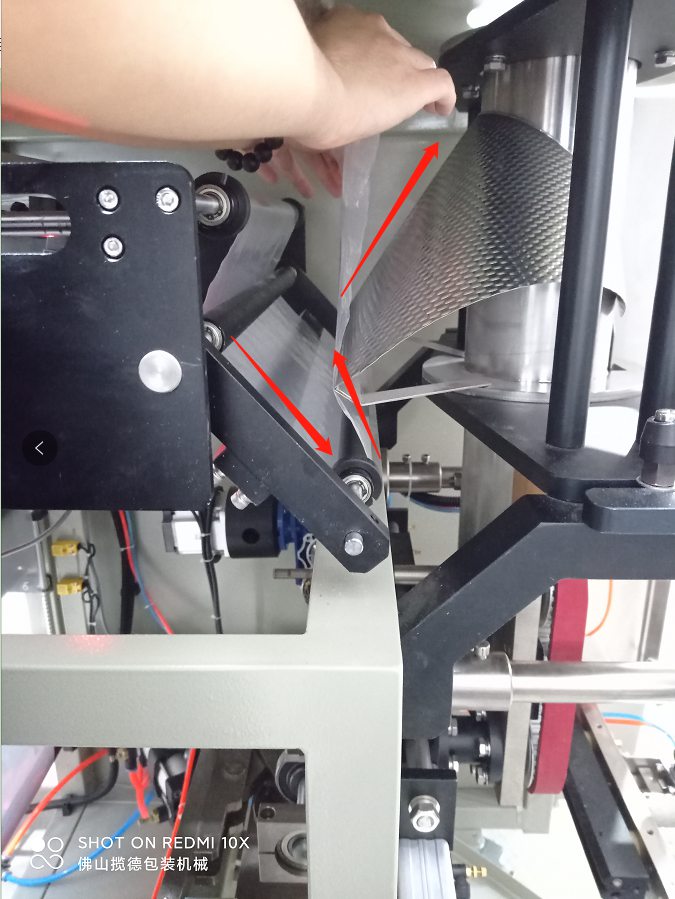

Step 12 get it on the bag former

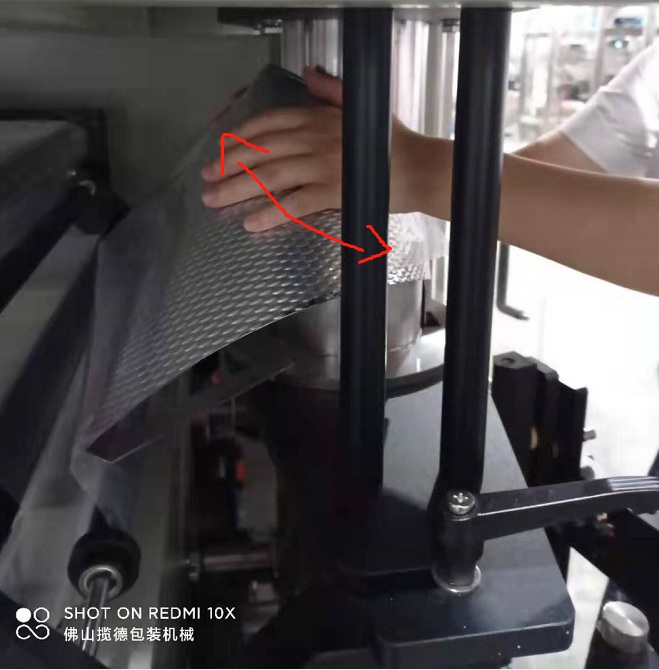

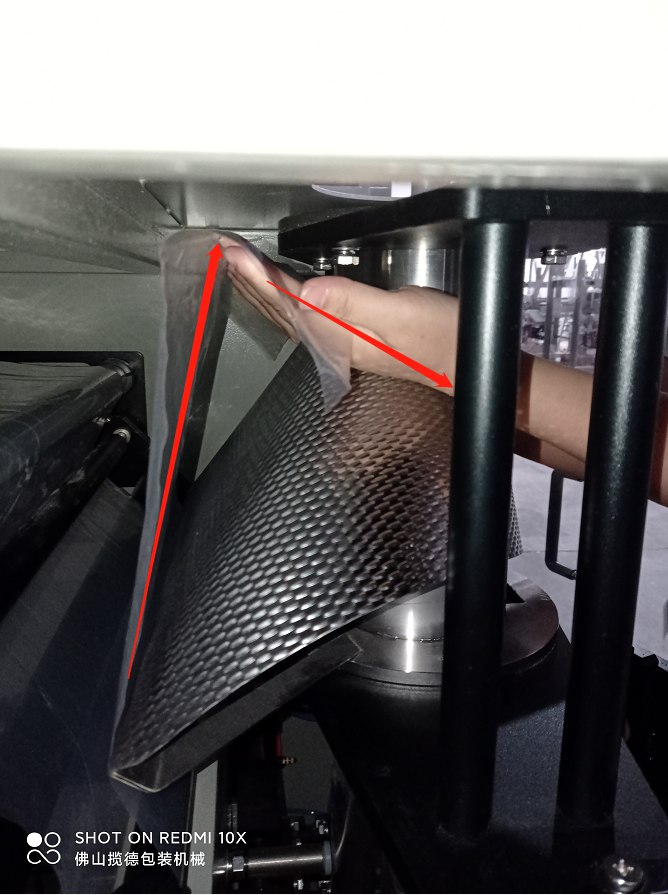

Step 13 Wrap it around the bag former, notice: try to follow how the hands process in the picture

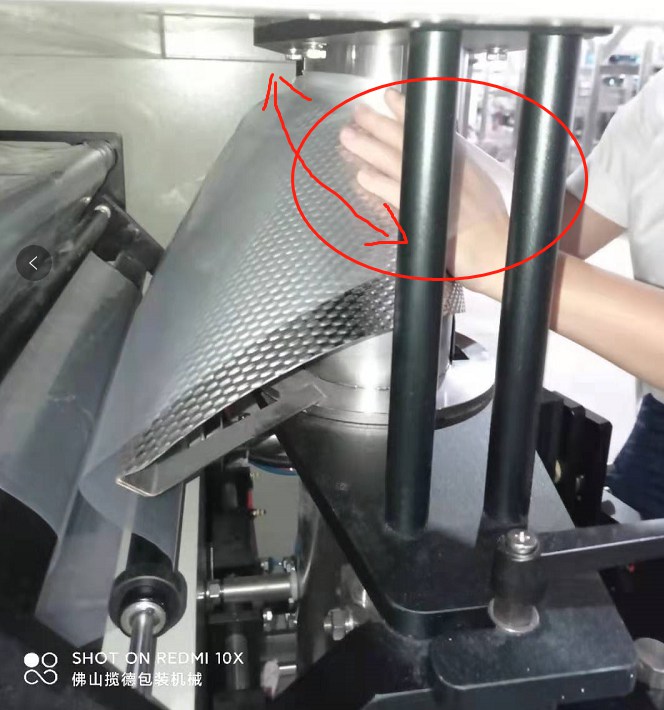

Step 14, watch the hands in the pictrue, place on the bag former, try to move up and down and try to get the film through the gap between cylinder and forming pact.

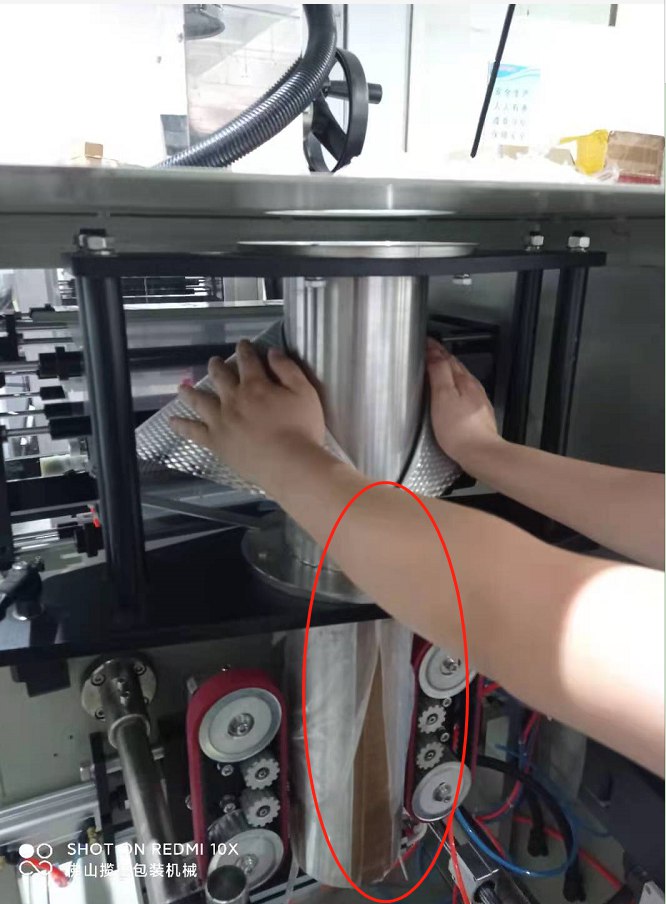

Step 15 Keep moving and with a little press on the  forming part at the same time

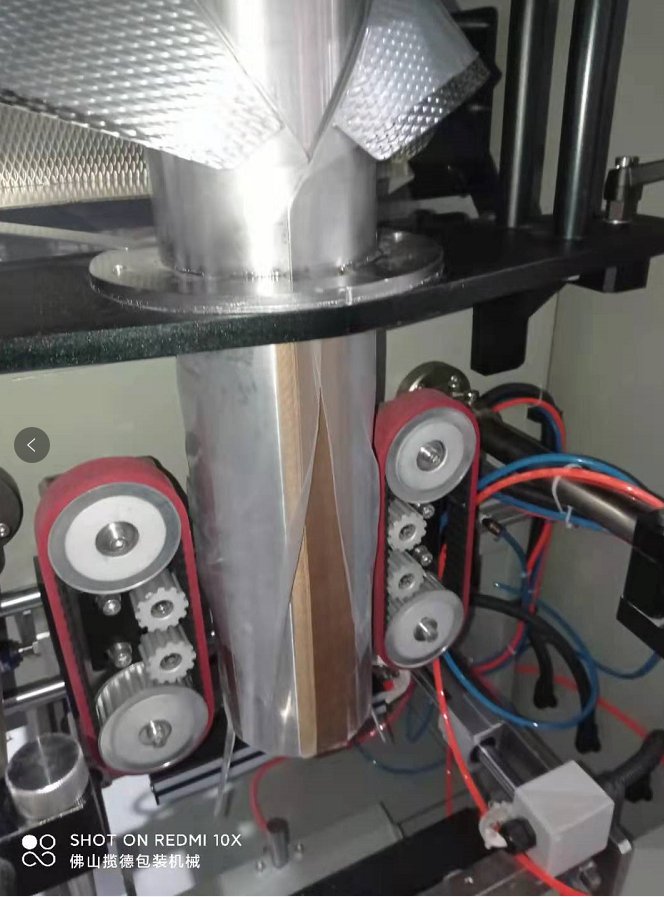

Step 16 Now it’s all warpping over the cylinder of bag former

Step 17 this is looking perfect.

 We recorded a video with more detailed installation steps.

    This is for LD-420 film roll installation, and there are still LD - 320 and LD -520 and more on the catalogue of LANDPACK machinery. We would like to write more about it, please pay attention.
